| Brand Name: | OLLIN PV |
| Model Number: | OL-72M-120 |
| MOQ: | one unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

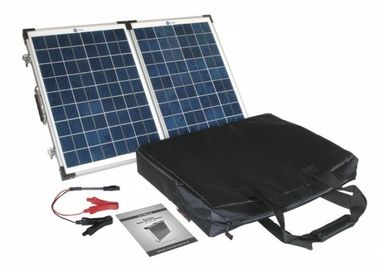

Folding solar panel Foldable 120Watt 12V Polycrystalline Solar Suitcase for hiking camping and military use
Features:
ENHANCED EXTERNAL LOAD / IMPACT
Snow Load : 5,400 Pa (30T) / 8,400 Pa (40T)
Wind Load : 2,400 Pa (30T) / 5,400 Pa (40T)
Hail Impact : 30.7m/s (speed ball)
Nominal Operating Cell Temp -40 ℃ TO+85℃.
Widely used for camping ,travel,adventure and other fields of outdoors and charge for DC 12v/24v/48v battery.Included controller,cable,alligator clip,connectors,protection conners and strong supporting leg single bag.
With Providing special design and Module efficiency : 16%
Warranty : 10 years/90%,25 years/80%, guaranteed 5 years material and workmanship
Tolerance : Guatanteed tolerance,different model with diffetent tolerance,and delivers higher outputs reliably
Excellent performance under low light conditions
Load test: module certified to wind and snow loads
Anti-reflective,hydrophobic layer with light absorption and minimal surface dust
Parameters Table
| specifcation | |
| Rated power | 120W |
| Vop | 17.9V |
| Working current (Iop) | 6.66A |
| Output Tolerance | ±3% |
| Temperate coefficient of Isc | (010+/- 0.01 )%/ ℃ |
| Temperate coefficient of Voc | - (0.38 +/-0.01 )%/ ℃ |
| Temperate coefficient of power Voc | -0.47%/℃ |
| Temperature range | -40℃to +80℃ |
| Frame and leg | Heavy duty aluminum |
| SLA Battery Voltage | 12V |
| Dimensions (L x W x H)mm | 540x1198x77mm (21.34*47.35*3.04in) & Size without Foldable 1080x1198x37mm(42.68*47.35*3.04in) |
| Weight (kgs) | 15.33kgs(33.8lbs) |
| Type | Folded size | Weight | Specification | ||||
| Max-power | Volatage at Pmax | Current at Pmax | Open- Circuit Voltage |
Short- Circuit Current |
|||
| Module | MM | KG | W | V | A | V |
A |
| OLPV-200W | 1200*540*70 | 20 | 200 | 18 | 10.53 | 22 |
11.37 |
| OLPV-190W | 190 | 18 | 10.15 | 22 |
10.96 |
||
| OLPV-180W | 180 | 18 | 9.62 | 22 |
10.38 |
||
| OLPV-170W | 1000*540*70 | 16 | 170 | 18 | 9.44 | 22 |
10.2 |
| OLPV-160W | 160 | 18 | 8.89 | 22 |
9.6 |
||
| OLPV-150W | 150 | 18 | 8.33 | 22 |
9 |
||
| OLPV-120W | 810*540*70 | 14 | 120 | 18 | 6.67 | 22 |
7.2 |
| OLPV-110W | 110 | 18 | 6.11 | 22 |
6.6 |
||
| OLPV-100W | 610*540*60 | 10 | 100 | 18 | 5.56 | 22 |
6 |
| OLPV-90W | 90 | 18 | 5 | 22 |
5.4 |
||
| OLPV-80W | 80 | 18 | 4.44 | 22 |
4.8 |
||
| OLPV-60W | 420*540*60 | 9 | 60 | 18 | 3.33 | 22 |
3.6 |
| specification | ||
| Nominal output | 12V/24V | |
| Max charge current | 15A | |
| Max load current | 15A | |
| Max solar panel | 270Watt/540Watt | |
| Over discharge protection | 10.8V/21.6V | Adjustable |
| Reset | 12V/24V | Adjustable |
| Over charger protection | 14.5V/29V | |
| Float charge | 13.8V/27.6V | |
| Self consumption | 2mA/4mA | |
| Size | 110*59*33mm | |
| Operating temperature | -20 to +60℃ | |
| Net weight | 110g | |
Advantages of Folding Solar Panels
1, Easy to carry: form-padded bag with shoulder strap.
2, Mono crystalline cells: efficient absorber of sunlight.
3, Compatible: includes two of the most common connections.
4, Easy to use: no construction needed, comes ready to use.
5, Quality assured: lifetime output guaranteed.
6, Product support: ongoing expert level advice.
7, Price friendly:at a pocket-friendly price.
8, Clean and compact: eco-friendly, quite energy output
9, Flexible: mountable
10, German standard: guaranteed 0-10% more power
Why choose us?
Advantages we have:
A: Experienced and sophisticated light products supplier.
B: Professional design team and sales department for your any requirements.
C: Alibaba golden supplier, factory recognized by CE, ISO9001, RoHS.
D: 7/24 service for you. All the question will be dealt within 24 hours.
Benefits you get:
A: Stable quality----Using the best material and technology.
B: Lower price----Not the cheapest but the lowest in the same quality products.
C: Good service----Satisfying service before and after service.
D: Delivery time----20-30days for mass production.
|
|
