Product Details:
|
Material: | Polycrystalline Silicon | Color: | Black |
---|---|---|---|
Dimension: | 520*365*18mm | Front Glass: | 3.2mm High Transmissiontempered Glass |
Frame: | Anodized Aluninium Alloy | Maximum System Voltage: | DC1000V |
Power Tolerance: | ±5% | ||
High Light: | solar pv modules,solar energy panels |

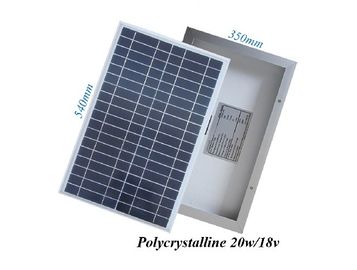

25watt white color frame PV Solar Panel applied to DC LED street lights camping picnic caravan RV Boat greenhouse
Features
1. High cell efficiency with quality silicon materials for long term output stability and reliability.
2. Strictly quality control ensure the stability and reliability, totally 23 testing procedure to do quality control
3 . High transmittance low iron tempered glass with enhanced stiffness and impact resistance
4. PET sheet imported from Toyo Japan with advanced encapsulatiing material, laminated in totally automatically
machine by experienced technician.
5. excellent performance in harsh weather
6. Outstanding electrical performance under high temperature and low irradiance conditons
Specifications:
Specifcation | |
Reted power | 25W |
Voc | 22.41V |
Vop | 17.9V |
Short circuit current (Isc) | 1.54A |
Working current (Iop) | 1.4A |
Output Tolerance | ±3% |
Temperate coefficient of Isc | (010+/- 0.01 )%/ ℃ |
Temperate coefficient of Voc | - (0.38 +/-0.01 )%/ ℃ |
Temperate coefficient of power Voc | -0.47%/℃ |
Temperature range | -40℃to +80℃ |
Frame | Heavy duty aluminum |
Kind of connection | waterproof junction box, can be customized |
Guarantee of power | 90% within 10 years 80% within 25 years |
Kind of glass and its thickness | Low Iron, high transparency tempered glass of 3.2mm |
SLA Battery Voltage | 12V |
Dimensions (L x W x H)mm | 520*365*18(20.47*14.37*0.71in) |
Q: Is OLLIN PV Solar factory or trade company?
A: OLLIN PV Solar is a factory located in Yuyao city, nearby Ningbo and Shanghai port.
Q:What is solar energy?
A: Solar energy is radiant light and heat from the Sun that is harnessed using a range of ever-evolving
technologies such as solar heating, photovoltaics, solar thermal energy, solar architecture, molten salt
power plants and artificial photosynthesis.Solar energy technologies use the sun's energy and light to
provide heat, light, hot water, electricity, and even cooling, for homes, businesses, and industry
