Product Details:
|
| Cell Material: | Polycrystalline Silicon | Cell Color: | Blue |
|---|---|---|---|
| Frame: | Anodized Aluminum Alloy | Front Sheet: | High Transmissions Low Iron Tempered Glass |
| Back Sheet: | TPE Quality Plastic | Main Market: | Asia Africa Southeast Asia |
| Junction Box: | JB With 3m Wire And Connector | Max. Power:: | 60W 80W 120W 180W 240W |
| High Light: | fold out solar panels,foldable portable solar panels |
||

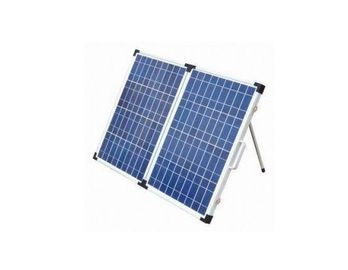

120Watt 12V Folding solar panel Polycrystalline Solar Suitcase for caravan RV boat solar pump watering system
Portable Foldable Solar Panel kits and systems
1. Nominal Operating Cell Temp -40 ℃ TO+85℃
2. Widely used for camping ,travel,adventure and other fields of outdoors and charge for DC 12v/24v/48v battery.Included controller,cable,alligator clip,connectors,protection conners and strong supporting leg single bag.
3. Providing special design.
4. Module efficiency : 16%
5.Warranty : 12 years/90%,25 years/80%, guaranteed 10years material and workmanship
6. Tolerance : Guatanteed tolerance,different model with diffetent tolerance,and delivers higher outputs reliably
7. Excellent performance under low light conditions
8. Load test: module certified to wind and snow loads
9.Anti-reflective,hydrophobic layer with light absorption and minimal surface dust
| specifcation | |
| Rated power | 120W |
| Vop | 17.9V |
| Working current (Iop) | 6.66A |
| Output Tolerance | ±3% |
| Temperate coefficient of Isc | (010+/- 0.01 )%/ ℃ |
| Temperate coefficient of Voc | - (0.38 +/-0.01 )%/ ℃ |
| Temperate coefficient of power Voc | -0.47%/℃ |
| Temperature range | -40℃to +80℃ |
| Frame and leg | Heavy duty aluminum |
| SLA Battery Voltage | 12V |
| Dimensions (L x W x H)mm | 540x1198x77mm (21.34*47.35*3.04in) & Size without Foldable 1080x1198x37mm(42.68*47.35*3.04in) |
| Weight (kgs) | 15.33kgs(33.8lbs) |
| specification | ||
| Nominal output | 12V/24V | |
| Max charge current | 15A | |
| Max load current | 15A | |
| Max solar panel | 270Watt/540Watt | |
| Over discharge protection | 10.8V/21.6V | Adjustable |
| Reset | 12V/24V | Adjustable |
| Over charger protection | 14.5V/29V | |
| Float charge | 13.8V/27.6V | |
| Self consumption | 2mA/4mA | |
| Size | 110*59*33mm | |
| Operating temperature | -20 to +60℃ | |
| Net weight | 110g | |
Portable foldable solar charging systems are available from 40w up to 200w. These portable foldable panels are a great way to maximise storage capacity of your RV or garage. They can be stored for extended periods of time and are easily deployed when the extra power is required for vacations or emergency backup power.
Complete and ready to use!
When you arrive at your destination, the set up process takes less than 5 minutes. Unpack the bag/case, unfold the panels, adjust the tilt legs, set on the ground in a sunny location pointing south, and finally connect the wires to your battery.
The two manufacturers we carry are from Solarland USA and Zamp Solar. Both manufacturers have a great portable foldable solar panel product and we have summarized the main features of each manufacturer to help our customers choose the best model for their portable solar panel needs.
EFFICIENCY
Low voltage-temperature coefficient allows higher power output at high-temperature condition
High efficient, high reliable solar cells ensure our product output stability
MATERIALS
Advanced EVA encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation
The sturdy, anodized aluminum frame allows the modules to be mounted on a variety of standard racking systems and to withstand harshest conditions
Ultra reliable bypass diodes prevent damage through overheating due to shaded or defective cells
Innovative, environmentally friendly packing method using pile-edges ensures modules arrive in perfect condition
New frame design incorporating hexagonal shaped drainage holes, with more grounding holes, provide flexible installation and use
BENEFITS
Manufactured in an ISO 9001:2008 certified plant
High efficiency, high safety, high reliability
Output power tolerance of +/-3%
25-year limited warranty on power output, 5-year limited warranty on materials and workmanship
