| Brand Name: | OLLIN PV |
| Model Number: | OL-72M-80 |
| MOQ: | one unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

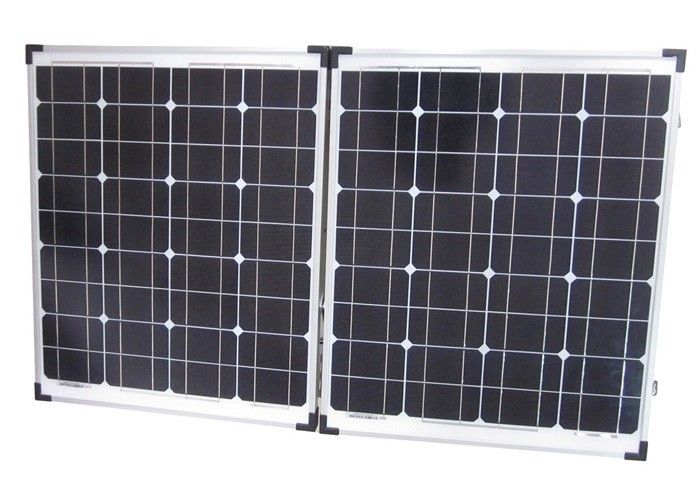

Easy Operation Folding solar panel Foldable Monocrystalline Solar Suitcase for hiking camping and military use
Portable Foldable Solar Panel kits and systems
Portable foldable solar charging systems are available from 40w up to 200w. These portable foldable panels are a great way to maximise storage capacity of your RV or garage. They can be stored for extended periods of time and are easily deployed when the extra power is required for vacations or emergency backup power.
Complete and ready to use!
When you arrive at your destination, the set up process takes less than 5 minutes. Unpack the bag/case, unfold the panels, adjust the tilt legs, set on the ground in a sunny location pointing south, and finally connect the wires to your battery.
The two manufacturers we carry are from Solarland USA and Zamp Solar. Both manufacturers have a great portable foldable solar panel product and we have summarized the main features of each manufacturer to help our customers choose the best model for their portable solar panel needs.
Parameters Table
| Type | Folded size | Weight | Specification | ||||
| Max-power | Volatage at Pmax | Current at Pmax | Open- Circuit Voltage |
Short- Circuit Current |
|||
| Module | MM | KG | W | V | A | V |
A |
| OLPV-200W | 1200*540*70 | 20 | 200 | 18 | 10.53 | 22 |
11.37 |
| OLPV-190W | 190 | 18 | 10.15 | 22 |
10.96 |
||
| OLPV-180W | 180 | 18 | 9.62 | 22 |
10.38 |
||
| OLPV-170W | 1000*540*70 | 16 | 170 | 18 | 9.44 | 22 |
10.2 |
| OLPV-160W | 160 | 18 | 8.89 | 22 |
9.6 |
||
| OLPV-150W | 150 | 18 | 8.33 | 22 |
9 |
||
| OLPV-120W | 810*540*70 | 14 | 120 | 18 | 6.67 | 22 |
7.2 |
| OLPV-110W | 110 | 18 | 6.11 | 22 |
6.6 |
||
| OLPV-100W | 610*540*60 | 10 | 100 | 18 | 5.56 | 22 |
6 |
| OLPV-90W | 90 | 18 | 5 | 22 |
5.4 |
||
| OLPV-80W | 80 | 18 | 4.44 | 22 |
4.8 |
||
| OLPV-60W | 420*540*60 | 9 | 60 | 18 | 3.33 | 22 |
3.6 |
1).Product Name
Portable folding solar charger kit/Portable folding solar panel kit
2). Specifications
Foldable and portable,easy to carry
High-efficiency monocrystallin solar panels with excellent performance
Provide energy for small electric appliances such as TV/radio/light/refrigerator/etc.,camping and emergency home power supply
3).Standard Test Condition
Under 1000W/m2, AM1.5, 25℃
4).E-mail Us For Details
Please email us to get more details about the products.
| Specifcation | |
| Related power | 80W |
| Vop | 17.9V |
| Working current (Iop) | 4.44A |
| Output Tolerance | ±3% |
| Temperate coefficient of Isc | (010+/- 0.01 )%/ ℃ |
| Temperate coefficient of Voc | - (0.38 +/-0.01 )%/ ℃ |
| Temperate coefficient of power Voc | -0.47%/℃ |
| Temperature range | -40℃to +80℃ |
| Frame and leg | Heavy duty aluminum |
| SLA Battery Voltage | 12V |
| Dimensions (L x W x H)mm | 600*510*73mm(23.7*20.2*28.9in) |
| Weight (kgs) | 10.7kg(23.6lbs) |
Where there is sunlight ,there is power supply!
The foldable solar panel kit with integrated charge controller can charge a battery directly and also a usb output to charge mobile phones, tablets and digital camera. This kit bring mobile solar power for RV, caravans, motor homes, trucks, golf car, boats as well as all the outdoor activities..
The foldable solar panel kit with high efficiency solar cell which can generate maximum power in the fix area and aluminum frame and supporting bracket, easy to install to absorb the sunlight, just plug and play.
FAQ
• Are you manufacturer or trading company?
--- we are a manufacturer & system integrator since Jan 2008.
• What kind of certification do you have?
--- Power from 3W to 315W with CE,PID,ISO
• What is the warranty of solar panels?
--- 5-year warranty on material and workmanship,90% power output in 10 years,20% in 25 years
• Can you quote me the best price?
---We need more information about your demands, such as the power/material/Qty/etc, then We can
suggest the suitable type and quote the best price for you.
• How do I get solar panel from ollin and Where can I get further information?
--- Please visit our website and send us email or call us.
|
|
