| Brand Name: | OLLIN PV |
| Model Number: | PV Solar Panels |
| MOQ: | 1 piece/unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |
High Transmission PV Solar Panels With Anodized Aluminium Alloy Frame
PV Solar Panels Features:
Material:Monocrystalline Silicon
Size:1200*540*30mm
Number of Cells: 36
Max. Power: 90Wp
Solar Cell Type: Monocrystalline 125×125 mm
Junction Box: IP67 Rated
Frame:Anodized Aluminium Alloy
Front Glass: 3.2mm, High Transmission, Low Iron,Tempered Glass
Connector: MC4
Cables :4mm2 , Length:900 mm
Operating Temperature:-40 to +85
OEM/ODM: Acceptable
PV Solar Panels Electrical Characteristics
| OLLIN-80M-100M | |||||||
| Monocrystalline Solar Module | |||||||
| Mechanical Data | |||||||
| Cell type | Mono125mm*125mm | ||||||
| No.of cells | 36 in series(4*9) | ||||||
| Dimensions | 1200*540*30mm | ||||||
| Weight | 6kg | ||||||
| Electrical Data | |||||||
| Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5) | |||||||
| Power | 80WM | 90WM | 100WM | ||||
| Open circuit voltage(Voc) | 21.5V | 21.5v | 21.6V | ||||
| Max. power voltage(Vmp) | 17.46V | 17.48V | 17.5V | ||||
| Short circuit current(Isc) | 4.78A | 5.4A | 5.99A | ||||
| Max. power current(Imp) | 4.4A | 5.1A | 5.55A | ||||
| A grade power Tolerance | ± 3% | ||||||
| Max.system voltage | 1000V | ||||||
| Operating temp. | —40℃~80℃ | ||||||
| Temperature coefficients of Pmax | -0.47% /℃ | ||||||
| Temperature coefficients of Voc | -0.38% /℃ | ||||||
| Temperature coefficients of Isc | +0.1% /℃ | ||||||

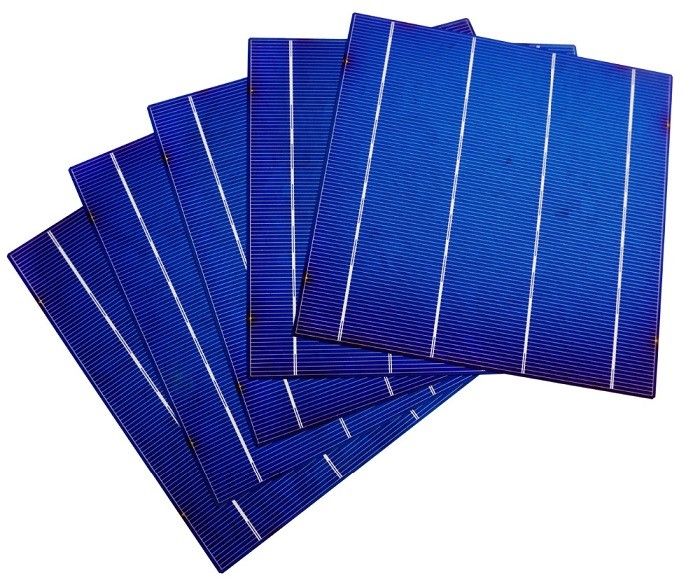

| Solar Cell | Poly solar cells 156x156 mm | ||||
| Front Cover | 3.2 mm thick, tempered glass | ||||
| Back Cover | TPT (Tedlar-PET-Tedlar) | ||||
| Encapsulant | EVA (ethylene vinyl acetate) | ||||
| Frame | Double-layer anodized aluminium alloy | ||||
| Junction Box | IP65 rated | ||||
| Maximum System Voltage | DC1000V (IEC) | ||||
| Maximum Series Fuse | 15 A | ||||
| Operating Temperature | -40℃~+85℃ | ||||
| Storage Temperature | -40℃~+85℃ | ||||
| Max. Wind Load / Max. Snow Load | 2400Pa / 5400Pa | ||||
| Application Class | Class A | ||||
| Packing configuration | Carton.Customers packing requirement is acceptable. |
The Micro-grid Dream House
Today’s green technology can turn your home into a mini-power plant: Use what you can, sell the rest to the
grid--and take power from the grid when you need it.
Solar panels: A 400watt, 3-foot-by-5-foot panel made by Sunset sells on Amazon for $3000. The average
home would need at least 10 to meet its energy need.
Micro-wind turbine: The Sky-stream model from Southwest Wind-power delivers 2.4killowatts-up to 90% of
the average home’s use-for $12,000 to $18,000, installed.
Insulation: A typical home can cut 25% to 50% of energy use through simple weather proofing and from
energy-efficient appliance.
Time switch；A switch attached to a timer directs the power from the solar panels to batteries or onto the
grid. During the peak hours of noon to 2 p.m.. When power is most expensive, the house runs off the
batteries.
Batteries: Though not essential for a grid-connected system, battery storage allows more flexibility to go on
or off grid.
Smart meter: A commercial time-of-day electric meter shows the varying price of electricity, so the owner
can use less and sell more during peak hours.
