Product Details:
|
| Name: | Solar Panel Module | Color: | Dark Blue |
|---|---|---|---|
| Dimension: | 340*240*17mm | Front Glass: | Tempered Glass |
| Frame: | Anodized Aluninium Alloy | Connecter: | DC Or Alligator Clip |
| High Light: | solar pv modules,marine solar panels |
||

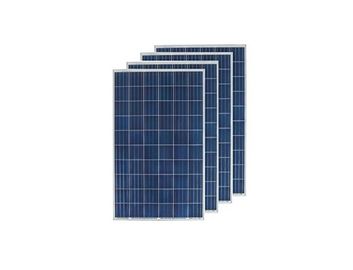

Dark Blue Color Solar Panel Module / Tempered Glass Solar Panel System
Solar Panel Module Highlights:
1. Outstanding electrical performance under high temperature and low irrandiance conditions
2. Capable of withstanding 1 inch diameter hail traveling at terminal velocity
3. Panel arrives ready for connection with an extra pair of MC4 Connectors for the extension cable
4. diodes in junction box;Colorful frame silver,black,dark brown...
Solar Panel Module Electrical Characteristics
| Model type | 30W | 20W | 15W | 10W | 5W |
| Peak power(Pmax) | 30 | 20 | 15 | 10 | 5 |
| Weight(kg) | 3.36 | 2.11 | 1.71 | 1.09 | 0.73 |
| Dimensions(mm) | 380x670x25 | 475x350x20 | 375x350x20 | 270x350x17 | 170x350x17 |
| Maximum power voltage (Vmp) | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 |
| Maximum power current (Imp ) | 1.72 | 1.15 | 0.86 | 0.58 | 0.29 |
| Open circuit voltage (Voc) | 21.6 | 21.6 | 21.6 | 21.6 | 21.6 |
| Short circuit current (Isc) | 1.93 | 1.3 | 0.97 | 0.65 | 0.33 |
| Maximum system voltage | DC 1000V | ||||
| Temp.Coeff.of Isc(TK Isc) | 0.045%/℃ | ||||
| Temp.Coeff.of Voc(TK Voc) | –0.34%/ | ||||
| Temp.Coeff.of Pmax(TK Pmax) | –0.47%/℃ | ||||
| Normal Operting Cell Temperature | 45±2℃ | ||||
| Tolerance | 0~3w | ||||
| Payment Terms | T/T | EXW | 30% T/T in advance, paid the balance before shipment |
| FOB | |||
| CFR | 30% T/T in advance, paid the balance against copy of B/L | ||
| CIF | |||
| L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||
| West Union |
Amount lower than 5000usd |
||
| Paypal | |||
| Delivery time | 15 working days after receiving payment for one container | ||
WHY CHOOSE US?
1. Excellent efficiency, Easy Installation & Maintenance
2. Outstanding performance in Low-Light
3. High transparent, Low-Iron, Tempered Glass
4. Ability to withstand High Wind-Pressure and Snow-Load
5. Advanced module sealing technology to eliminate leakage and frame deformation
6. Ability to meet customized customer's specific requirements
