| Brand Name: | OLLIN PV |
| Model Number: | OL-36P-60 |
| MOQ: | 1 piece/unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

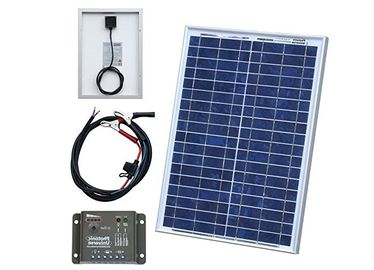

Polycrystalline Silicon PV Solar Panels With Long Term Output Stability
PV Solar Panels Features
1. High cell efficiency with quality silicon materials for long term output stability and reliability.
2. Strictly quality control ensure the stability and reliability, totally 23 testing procedure to do quality control
3 . High transmittance low iron tempered glass with enhanced stiffness and impact resistance
4. excellent performance in harsh weather
5. Outstanding electrical performance under high temperature and low irradiance conditons
| Electrical Characteristic: | |
| Module Type | 50W-36P |
| Peak power | 25W 0~+3%Toleracne |
| Optimum Operating Voltage(Vmp) | 18.0V |
| Optimum Operating Current(Imp) | 2.77A |
| Open-Circuit Voltage(Voc) | 21.6V |
| Short-Circuit Current(Isc) | 2.99A |
| Maximum system voltage | DC1000V |
| Warranty |
5 years product defect warranty. 90% in 10 years, 80% of 25 years. |
| Mechanical Characteristics: | |
|---|---|
| Module type | 25W-36P |
| Size | 540*670*25mm |
| Weight | 4 kg |
| No. of Cells | 36(4*9) pcs |
| Cell dimension | mono 156*156mm |
| Front cover | 3.2mm tempered glass |
| Frame | Anodized aluminum alloy |
| Junction Box | IP67/IP65 rated |
| Connectors | MC4 |
| Temperature coefficient: | |
| NOCT cell | 46±2°c |
| Temperature coefficient Voc(%) | +0.04±0.015%/°c |
| Temperature coefficient Pm(%) | -0.3±0.02%/°c |
| Temperature coefficient Im(%) | -0.45±0.05%/°c |
| Temperature coefficient Vm(%) | +0.04%/°c |
| Operating temperatures | -0.32±0.02%/°c |
| Operating temperatures | -40°c~+90°c |
| Surface pressure | 60m/s(200kg /m² ) |
Package included
1 piece 25W poly solar panel with out box
1) Solar garden lighting
2) Small home lighting system
3) Solar street lighting
4) Solar Outdoor Advertising
5) For a variety of low-power appliances, emergency lights, advertising lights, traffic
lights,household lights, fans, such as solar water pumps, solar lights, small solar systems
Our Service
1. We have our own factory with professional for solar panel and system over 10 years.
2. We have a strong R&D team.
3. Offering OEM service for your order.
4. Reply within 12 hours.
5. Offering competitive price, good after-sales service.
video
|
|
