| Brand Name: | OLLIN PV |
| Model Number: | OL-72P-320 |
| MOQ: | 20 units |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

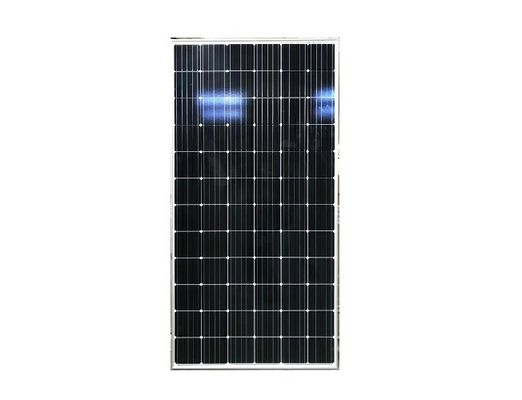

Aluminum Alloy Residential Solar Power / Small Solar Panel Roof Tiles
Key Features
Withstand high wind (2400Pa) and snow loads (5400Pa)
Guaranteed Positive Output Tolerance (0-3%)
Excellent performance in low light environments
High modules conversion efficiency
12V battery use
Package Includes
Solar panel is made of light energy into electricity for charge battery ,solar panel working procesing :Solar Panel---Solar Controller---Battery---Inverter---AC Appliance .
Solar panel constituent part :
1. Stalinite;
2. EVA;
3. Solar cell;
4. Backboard(PET);
5. Aluminium alloy;
6. Juntion box;
7. Silica gel
Specifications:
|
Module Type |
OLPV290W |
OLPV300W |
OLPV310W |
OLPV320W |
OLPV330W |
|
Maximum power |
290WP |
300WP |
310WP |
320WP |
330WP |
|
Max power voltage |
42.5V |
42.5v |
42.6V |
42.6V |
42.6V |
|
Max power current |
35.46V |
35.48V |
35.5V |
35.5V |
35.5V |
|
Open circuit voltage |
8.68A |
8.96A |
9.28A |
9.58A |
9.8A |
|
Short circuit current |
8.01A |
8.3A |
8.58A |
8.8A |
9.1A |
|
Module Efficiency |
13.13% |
14.14% |
15.15% |
16.16% |
16.67% |
|
Power Tolerance |
-0~+5W |
-0~+5W |
-0~+5W |
-0~+5W |
-0~+5W |
|
Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5 |
|||||
|
Nominal Operating Cell Temperatur |
45 ± 2℃ |
||||
|
Temperature coefficients of Isc |
+0.049% /℃ |
||||
|
Temperature coefficients of Voc |
-0.340% /℃ |
||||
|
Temperature coefficients of Pmax |
-0.430% /℃ |
||||
|
Solar Cell |
Poly solar cells 156x156 mm |
||||
|
Front Cover |
3.2 mm thick, tempered glass |
||||
|
Back Cover |
TPT (Tedlar-PET-Tedlar) |
||||
|
Encapsulant |
EVA (ethylene vinyl acetate) |
||||
|
Frame |
Double-layer anodized aluminium alloy |
||||
|
Junction Box |
IP65 rated |
||||
|
Maximum System Voltage |
DC1000V (IEC) |
||||
|
Maximum Series Fuse |
15 A |
||||
|
Operating Temperature |
-40℃~+85℃ |
||||
|
Storage Temperature |
-40℃~+85℃ |
||||
|
Max. Wind Load / Max. Snow Load |
2400Pa / 5400Pa |
||||
|
Application Class |
Class A |
||||
|
Packing configuration |
Carton.Customers packing requirement is acceptable. |
||||
High efficiency
High module conversion efficiency up to 17% through innovative manufacturing technology. Manufacturing with CE standard, could widely used in solar power station, building, solar street lighting, traffic.etc.
Solar panel is made up of high quality solar cell with high effciency and transmission rate, low iron tempered glass, anti-aging EVA, high flame resistant TPT and anodized aluminum alloy.
Packaging Details
1 carton box and pallet
2 According to your requirement/Suitable for shipment
Delivery Details
1 15~20 working days after received deposit
2 Based on Qty
Company Profile:
Continuously manufacturing PV modules since 2008, OLLIN-PV is one of the most experienced module makers in the industry. More than 8 years of operating data support OLLIN-PV’s reputation as the best overall quality, performance, and value for solar investors. The cutting-edge SN-series leads the industry again in advanced design, construction, and performance. The SN-series is the ideal module for any system size in any given environment. With the quality to last the lifetime of the PV system, OLLIN-PV’s SN-series provides the confidence and assurance to each and every one of our customers.
|
