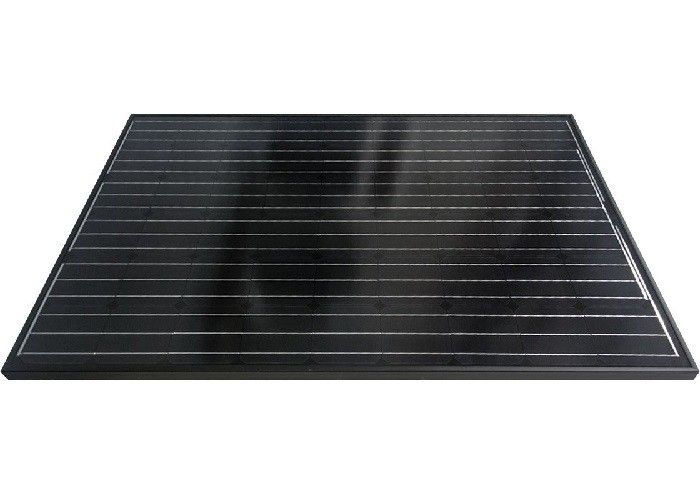

255 Watt Polycrystalline Solar Panel High Transmissions Low Iron Tempered Glass Material

255 Watt Polycrystalline Solar Panel High Transmissions Low Iron Tempered Glass Material
255 Watt Polycrystalline Solar Panel High Transmissions Low Iron Tempered Glass Material

Large Image :  255 Watt Polycrystalline Solar Panel High Transmissions Low Iron Tempered Glass Material

Product Details:
Place of Origin: zhejiang Pr, China
Brand Name: OLLIN PV
Certification: CE ROSH ISO
Model Number: OL-60P-255
Payment & Shipping Terms:
Minimum Order Quantity: one unit
Price: Negotiable
Packaging Details: 0NE PCS PER CARTON OR 25PCS PER PALLET
Delivery Time: 20DAYS
Supply Ability: 1500UNITS PER WEEK

255 Watt Polycrystalline Solar Panel High Transmissions Low Iron Tempered Glass Material

Description
Cell Material: Polycrystalline Silicon Cell Array: 6*10
Cell Color: Blue Frame: Anodized Aluminum Alloy
Front Sheet: High Transmissions Low Iron Tempered Glass Main Market: Asia Africa Southeast Asia
Junction Box: JB With 0.9m Wire And Connector
High Light:

marine solar panels

,

solar energy panels



255watt Polycrystalline PV Solar Panel heating swimming pools power pumps indoor and out door light battery





China manufacturer poly solar cell panels for solar power plant


Solar panel is made of light energy into electricity for charge battery ,solar panel working procesing :



Solar Panel---Solar Controller---Battery---Inverter---AC Appliance .



Solar panel constituent part :


1. Stalinite (Protect generate conductor from damage ,such as solar cell )


2. EVA (Fix aluminium alloy and generate conductor )


3. Solar cell (Generation function )


4. Backboard(PET) ,Sealing ,insulation and waterproof )


5. Aluminium alloy (Seal and support function)


6. Juntion box ( Protect generation system and transfer current function )


7. Silica gel ( Sealing function )






Products information

255 Watt Polycrystalline Solar Panel High Transmissions Low Iron Tempered Glass Material 0




Item solar panel
Solar cells :

poly-Crysalline 156×156mm

60pcs.(6×10) ---3 bus bars

Max-power 245Wp 250Wp 255Wp 260Wp 265Wp 265Wp
Power Tollerance 0 to +6W
Voltage at Pmax (Vmp) 30.7V 30.9V 31.1V 31.3V 31.5V 31.5V
Current at Pmax(Imp) 7.98A 8.09A 8.17A 8.20A 8.31A 8.31A
Open-Circuit Voltage(Voc) 37.5V 37.7V 37.9V 38.2V 38.4V 38.4V
Short-Circuit Current(Isc) 8.58A 8.76A 8.87A 8.97A 8.99A 8.99A
Maximum system voltage(VDC) 1000(IEC), 600(UL)
Cell Efficiency 17.0% 17.3% 17.6% 17.6% 18.0% 18.0%
Moudule Efficiency 15.00% 15.40% 15.70% 16.00% 16.30% 16.30%
No. of Bypass Diodes (pcs.) 3
Max. Seriex Fues(A) 12A
Temperature coefficients of Pmax -0.45%/ ℃
Temperature coefficients of Voc -0.34%/ ℃
Temperature coefficients of Isc 0.05%/ ℃
Nominal Operating Cell Temperature 45±2℃
PS *STC Conditions (1000W/m*m ; 1.5 AM and 25℃ Cell temperature)


SOLAR PUMPING


Another application of solar photovoltaic is Solar Pumping. The solar pumping systems are of two types,



one is DC solar Pumping system and other is AC solar Pumping system. DC solar pumping systems are



small systems which are for domestic purposes, offices and irrigation of small lands up to two Acres. These



DC solar pumping systems are very reliable and cheaper. In this system the pump motor is DC motor and



one controller controls its operation which is MPPT controller responsible for smooth operation of the pump



without the need for batteries. The maximum flow with DC systems can be upto 10,000 Gallons per day with



maximum head of 200ft.

Solar AC Pumping system consists of AC Pump, Pump Controller and solar panels. These are big systems



of motor power varying from 2KW to 60KW and their up-front costs vary from Rs.1M to 20M. These AC



pumps are for all kinds of agriculture and big farming applications. The flow can vary from 10m3 per hour to



300 m3 per hour with head varying from 100 ft to 600 ft.

Solar Pumping is very specialized job and calls for high technical expertise starting from pump design &



selections to installation and commissioning of systems. The customers should buy systems from



professional companies and get installed from trained pump technicians.

Solar pumps are very economical if you compare operational costs with the conventional pumping system



working through Diesel generators or Utility Grid. The payback varies from three to seven years depending



on the type of system you are buying.



Advantages



1. All solar module produces without any aberration or bubble.



2. Back sheet is TPT&PET, and the thickness is 0.3mm.



3. The thickness of EVA is 0.4mm,better than other company use 0.3mm or 0.35mm.We use new EVA



material, not the overdue, the overdue EVA will influence the performance and lifespan of solar panel.



4. New aluminum with 1.00mm thickness, high hardness, good impact resistance. Some company will use



bad recycle aluminum.



5. Tempered glass with 3.2mm has advantages of high strength, impact resistance,good light transmittance.



6. The solar cells made in Taiwan, high efficiency, low attenuation,the attenuation is less than 10% within 5



years and less than 15% within 10 years.



7. The junction box has good waterproof, good anti-aging,PV wire. The PV wire is good for anti-aging and



anti-corrosion, it's better than the normal wire.



8. Package by 7 layers thick carton, moisture proof and anti-cracking. Two pieces in one carton, easy to



delivery.
