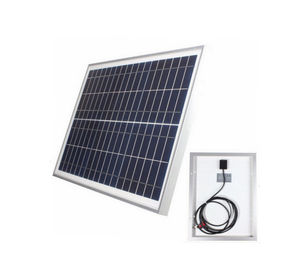

Customzied PV Solar Panels With High Module Conversion Efficiency 17%

Customzied PV Solar Panels With High Module Conversion Efficiency 17%
Customzied PV Solar Panels With High Module Conversion Efficiency 17%

Large Image :  Customzied PV Solar Panels With High Module Conversion Efficiency 17%

Product Details:
Place of Origin: zhejiang Pr, China
Brand Name: OLLIN PV
Certification: CE ROSH ISO
Model Number: PV Solar Panels
Payment & Shipping Terms:
Minimum Order Quantity: one unit
Price: Negotiable
Packaging Details: 1 PCS PER CARTON
Delivery Time: 20DAYS
Supply Ability: 1200UNITS PER WEEK

Customzied PV Solar Panels With High Module Conversion Efficiency 17%

Description
Name: PV Solar Panels Cell Array: 6x10
Cell Color: Black Front Sheet: High Transmissions Low Iron Tempered Glass
Back Sheet: TPE Quality Plastic Junction Box: JB With 0.9m Wire And Connector
High Light:

solar pv modules

,

marine solar panels

Customzied PV Solar Panels With High Module Conversion Efficiency 17%



PV Solar Panelsconstituent part :


1. Stalinite;



2. EVA;



3. Solar cell;



4. Backboard(PET);



5. Aluminium alloy;



6. Juntion box;



7. Silica gel



High efficiency



High module conversion efficiency up to 17% through innovative manufacturing technology. Manufacturing



with CE standard, could widely used in solar power station, building, solar street lighting, traffic.etc.



Solar panel is made up of high quality solar cell with high effciency and transmission rate, low iron tempered



glass, anti-aging EVA, high flame resistant TPT and anodized aluminum alloy.







Module Type OLPV250W OLPV255W OLPV260W OLPV270W OLPV280W
Maximum power 250WM 255WM 260WM 270WM 280WM
Max power voltage 36.54v 36.88v 36.9V 36.88v 36.9V
Max power current 29.74V 29.86V 29.94V 29.86V 29.94V
Open circuit voltage 8.96A 9.2A 9.35A 9.72A 9.99A
Short circuit current 8.3A 8.5A 8.66A 8.98A 9.33A
Module Efficiency 13.13% 14.14% 15.15% 16.16% 16.67%
Power Tolerance -0~+5W -0~+5W -0~+5W -0~+5W -0~+5W
Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5
Nominal Operating Cell Temperatur 45 ± 2℃
Temperature coefficients of Isc +0.049% /℃
Temperature coefficients of Voc -0.340% /℃
Temperature coefficients of Pmax -0.430% /℃
Solar Cell Poly solar cells 156x156 mm
Front Cover 3.2 mm thick, tempered glass
Back Cover TPT (Tedlar-PET-Tedlar)
Encapsulant EVA (ethylene vinyl acetate)
Frame Double-layer anodized aluminium alloy
Junction Box IP65 rated
Maximum System Voltage DC1000V (IEC)
Maximum Series Fuse 15 A
Operating Temperature -40℃~+85℃
Storage Temperature -40℃~+85℃
Max. Wind Load / Max. Snow Load 2400Pa / 5400Pa
Application Class Class A
Packing configuration Carton.Customers packing requirement is acceptable.



SOLAR POWER FOR TELECOMMNUCATION NETWORKS



Solar power for telecommunication networks is another application for solar photovoltaic. The



telecommunication BTS towers have power supply from Diesel Generators in areas where no grid is



available and have back up diesel generators where grid is available. Operational Expense of power



generator is very high. The best replacement of the diesel back up is the solar power which is clean energy.



These systems can be hybrid (solar and wind) where wind is available. Many telecom operators have



installed solar systems and they are very much satisfied and many are still in the process of planning for



purchase of solar power systems. Again designing of solar solution for BYS towers is a specialized job.





WHY CHOOSE US?



1. Excellent efficiency, Easy Installation & Maintenance





2. Outstanding performance in Low-Light





3. High transparent, Low-Iron, Tempered Glass





4. Ability to withstand High Wind-Pressure and Snow-Load





5. Advanced module sealing technology to eliminate leakage and frame deformation





6. Ability to meet customized customer's specific requirements
