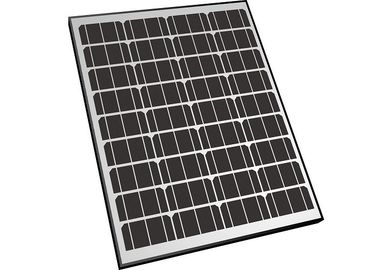

90 Watt Mono Silicon Solar Panels For Generation System Traffic Signal Light

90 Watt Mono Silicon Solar Panels For Generation System Traffic Signal Light
90 Watt Mono Silicon Solar Panels For Generation System Traffic Signal Light

Large Image :  90 Watt Mono Silicon Solar Panels For Generation System Traffic Signal Light

Product Details:
Place of Origin: zhejiang Pr. China
Brand Name: OLLIN PV
Certification: CE
Model Number: OL-36M-90
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece/unit
Price: Negotiable
Packaging Details: 2PC per carton,
Delivery Time: 20DAYS
Supply Ability: 2000PCS PER WEEK

90 Watt Mono Silicon Solar Panels For Generation System Traffic Signal Light

Description
Material: Monocrystalline Silicon Color: Black
Dimension: 1100*670*30mm Front Glass: 3.2mm High Transmissiontempered Glass
Frame: Anodized Aluninium Alloy Weight: 8.0kg
Junction Box: Junction Box
High Light:

mono silicon solar panels

,

monocrystalline solar cells

 90Watt Monocrystalline Solar Module off-Gird water pump power for generation system tranffic signal light , security


Solar Panel Characteristics

1) high reliability with guaranteed +/-3% output power tolerance

2) The modules can withstand high wind-pressure,snow loads and extreme temperatures

3) Bypass diodes to minimize power loss with shading

4) High and stable conversion efficiency to ensure the highest quality

5) High efficiency crystalline silicon cells

6) High transmission low iron tempered glass,strong mechanical resistance

7) Standard waterproof junction box,with bypass diode

8) High endurance to different atrocious weather

9) Custom designed modules according to clients' requirement

Detailed Product Description



Item number OL-M90W
Power 90W
Solar cell Monocrystalline
Number of cell 36(9*4)
Moudule size Customized
Optimum operating Voltage(Vmp) 18V
Optimum operating current(Imp) 5A
Open-Circuit Voltage(Voc) 21.6V
Open-Circuit Currant(Isc) 5.2A
Module efficiency 13.9%
Weight 9.6KG
Thickness glass 18mm tempered glass
Frame Anodized aluminum alloy
Laminating Material EVA
Backsheet material TPT
Junction box Ip65
Connector Mc4 connectors with cable
Operating Module Temperature —40℃to +80℃
Maximum System Voltage 1000V DC
Maximum Series fuse Rating 15A
Power Tolerance ±3%
Irradiance 1000W/m2,Module temperature 25℃,Am=1.5
Components & Mechanical Data
Front Glass Thickness (mm) High Transparency Tempered Glass 3.2mm
Junction Box Type Pass the TUV Certificate PPO(Black/IP65)
Output Cables 4mm²/0.9m
Frame (Material Corners, etc.) Aluminum-alloy
Encapsulation Material EVA(0.50±0.03 mm thickness)
Back Foil White TPT(0.50±0.03 mm thickness)
Fixing Adhesive Silicone Sealant ( White)
Temperature Range (°C) -40°C to +90°C
Max Load Capacity(Kpa) 2.4wind load/5.4 snow load
Values at Standard Test Conditions
STC Irradiance:1000W/ m²
Module Temperature 25°C
AM 1.5

90 Watt Mono Silicon Solar Panels For Generation System Traffic Signal Light 0


Quality and Warranty

For a period of twenty‐five (25)years commencing on the Warranty Start Date, loss of power

output of the nominal power output measured at Standard Test Conditions (STC) for the

Product(s) shall not exceed:
For Polycrystalline A grade solar cell, 3% in the first year, thereafter 0.66% per year, ending


with 81% in the 25 th year after the Warranty Start Date;

The Warranty Start Date shall be defined as the date of the Bill of Lading date

3Years Manufacturing Warranty

10Years Warranty 90% Power Output

25Years Warranty 80% Power Output
