| Brand Name: | OLLIN PV |
| Model Number: | OL-36M-170 |
| MOQ: | 1 piece/unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

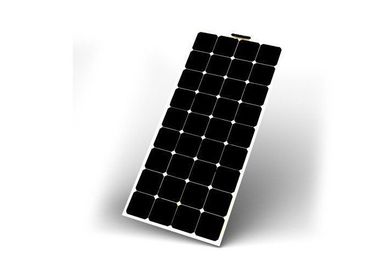

170Watt 12V Solar Panel with white and black Metal frame use for Military signaling applications
Features
Long lifespan: 25Years lifetime guarantee, 12years workshop warranty. 90% output in first 10years. 85%
output in next 15years.If module fail during warranty period, please contact local dealer, and provide the
warranty card to replace the products.
Solar panels are withstand extreme working condition (from -40°C to 120°C)
Grade A solar panels rated by CE.
High transformation efficiency solar panels
New UV reflector protected Layer
Maintenance free solar panels
No exposed metal parts
Custom-made available
100% EL TEST before and after laminator for each solar panels
Bankable solar panels in South America, Africa, UAE, India
Specifications:
| Module Type | OLPV130W | OLPV140W | OLPV150W | OLPV160W | OLPV165W |
| Maximum power | 130 W | 140 W | 150 W | 160 W | 165 W |
| Max power voltage | 17.50 V | 17.70 V | 17.90 V | 18.10 V | 18.20 V |
| Max power current | 7.43 A | 7.92 A | 8.38 A | 8.84 A | 9.06 A |
| Open circuit voltage | 21.50 V | 21.70 V | 21.90 V | 22.10 V | 22.30 V |
| Short circuit current | 7.96 A | 8.49 A | 9.01 A | 9.53 A | 9.74 A |
| Module Efficiency | 13.13% | 14.14% | 15.15% | 16.16% | 16.67% |
| Power Tolerance | -0~+5W | -0~+5W | -0~+5W | -0~+5W | -0~+5W |
| Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5 | |||||
| Nominal Operating Cell Temperatur | 45 ± 2℃ | ||||
| Temperature coefficients of Isc | +0.049% /℃ | ||||
| Temperature coefficients of Voc | -0.340% /℃ | ||||
| Temperature coefficients of Pmax | -0.430% /℃ | ||||
| Solar Cell | Poly solar cells 156x156 mm | ||||
| Front Cover | 3.2 mm thick, tempered glass | ||||
| Back Cover | TPT (Tedlar-PET-Tedlar) | ||||
| Encapsulant | EVA (ethylene vinyl acetate) | ||||
| Frame | Double-layer anodized aluminium alloy | ||||
| Junction Box | IP65 rated | ||||
| Maximum System Voltage | DC1000V (IEC) | ||||
| Maximum Series Fuse | 15 A | ||||
| Operating Temperature | -40℃~+85℃ | ||||
| Storage Temperature | -40℃~+85℃ | ||||
| Max. Wind Load / Max. Snow Load | 2400Pa / 5400Pa | ||||
| Application Class | Class A | ||||
| Packing configuration | Carton.Customers packing requirement is acceptable. | ||||
SOLAR PUMPING
Solar Pumping is another application of solar photovoltaic. The solar pumping systems are of two types,
one is DC solar Pumping system and other is AC solar Pumping system. DC solar pumping systems are
small systems which are for domestic purposes, offices and irrigation of small lands up to two Acres. These
DC solar pumping systems are very reliable and cheaper. In this system the pump motor is DC motor and
one controller controls its operation which is MPPT controller responsible for smooth operation of the pump
without the need for batteries. The maximum flow with DC systems can be upto 10,000 Gallons per day with
maximum head of 200ft.
Solar AC Pumping system consists of AC Pump, Pump Controller and solar panels. These are big systems
of motor power varying from 2KW to 60KW and their up-front costs vary from Rs.1M to 20M. These AC
pumps are for all kinds of agriculture and big farming applications. The flow can vary from 10m3 per hour to
300 m3 per hour with head varying from 100 ft to 600 ft.
Solar Pumping is very specialized job and calls for high technical expertise starting from pump design &
selections to installation and commissioning of systems. The customers should buy systems from
professional companies and get installed from trained pump technicians.
Solar pumps are very economical if you compare operational costs with the conventional pumping system
working through Diesel generators or Utility Grid. The payback varies from three to seven years depending
on the type of system you are buying.
FAQ
1. Are you a factory or trading company?
Yes, we are factory, supplying OEM/ODM service.
2. Can you accept OEM service?
Yes, we can. Qty is not the only standard , more qty, less cost.
3. How about your after sales-service?
4. How about your payment terms?
We accept T/T, LC
5. How could I buy the bluetooth speaker I need if there is no price in the website?
A:You can send your inquiry to us about the bluetooth speaker you need, our sales will reply you within 24
hours to help you make the order.
|
|
