Product Details:
|
| Material: | Polycrystalline Silicon | Color: | Dark Blue |
|---|---|---|---|
| Dimension: | 1640*990*45mm | Front Glass: | 3.2mm High Transmissiontempered Glass |
| Frame: | Anodized Aluninium Alloy | Operating Temperature: | -40℃ To+85℃ |
| High Light: | multicrystalline solar panels,poly solar panel |
||

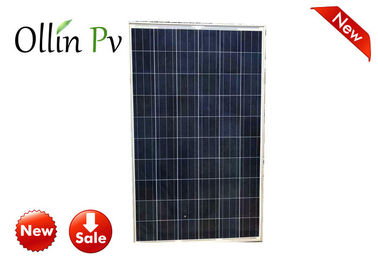

260w cheap price Polycrystalline solar panel Gird-connected power generation system solar panel
Product features:
1. High-transmittance low-iron tempered glass, anti-aging EVA, excellent weathering resistance TPT
2. Anodized quality aluminum frame, beautiful appearance
3. Wind resistance, pressure resistance, high conversion efficiency
Product field:
1. Gird-connected power generation system
2. Off-grid power generation system
3. Building-integrated power generation facilities
Parameters Table
| Module Type | OLPV250W | OLPV255W | OLPV260W | OLPV270W | OLPV280W |
| Maximum power | 250WM | 255WM | 260WM | 270WM | 280WM |
| Max power voltage | 29.74V | 29.86V | 29.94V | 29.86V | 29.94V |
| Max power current | 8.3A | 8.5A | 8.66A | 8.98A | 9.33A |
| Open circuit voltage | 36.54v | 36.88v | 36.9V | 36.88v | 36.9V |
| Short circuit current | 8.96A | 9.2A | 9.35A | 9.72A | 9.99A |
| Module Efficiency | 13.13% | 14.14% | 15.15% | 16.16% | 16.67% |
| Power Tolerance | -0~+5W | -0~+5W | -0~+5W | -0~+5W | -0~+5W |
| Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5 | |||||
| Nominal Operating Cell Temperatur | 45 ± 2℃ | ||||
| Temperature coefficients of Isc | +0.049% /℃ | ||||
| Temperature coefficients of Voc | -0.340% /℃ | ||||
| Temperature coefficients of Pmax | -0.430% /℃ | ||||
| Solar Cell | Poly solar cells 156x156 mm | ||||
| Front Cover | 3.2 mm thick, tempered glass | ||||
| Back Cover | TPT (Tedlar-PET-Tedlar) | ||||
| Encapsulant | EVA (ethylene vinyl acetate) | ||||
| Frame | Double-layer anodized aluminium alloy | ||||
| Junction Box | IP65 rated | ||||
| Maximum System Voltage | DC1000V (IEC) | ||||
| Maximum Series Fuse | 15 A | ||||
| Operating Temperature | -40℃~+85℃ | ||||
| Storage Temperature | -40℃~+85℃ | ||||
| Max. Wind Load / Max. Snow Load | 2400Pa / 5400Pa | ||||
| Application Class | Class A | ||||
| Packing configuration | Carton.Customers packing requirement is acceptable. | ||||
Solar Cell
> High Efficiency PV Cells
> Appearance Consistency
>Anti-PID
Glass
> Anti-reflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years(30 years optional)
Frame
> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip design-glue injection
Junction box
> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
China manufacturer poly solar cell panels for solar power plant
Solar panel is made of light energy into electricity for charge battery ,solar panel working procesing :Solar Panel---Solar Controller---Battery---Inverter---AC Appliance .
Solar panel constituent part :
1. Stalinite (Protect generate conductor from damage ,such as solar cell )
2. EVA (Fix aluminium alloy and generate conductor )
3. Solar cell (Generation function )
4. Backboard(PET) ,Sealing ,insulation and waterproof )
5. Aluminium alloy (Seal and support function)
6. Juntion box ( Protect generation system and transfer current function )
7. Silica gel ( Sealing function )
