Product Details:
|
Dimension: | 1200*540*30mm | Material: | Monocrystalline Silicon |
---|---|---|---|
Front Glass: | 3.2mm High Transmissiontempered Glass | Frame: | Anodized Aluninium Alloy |
Maximum System Voltage: | DC1000V | Power Tolerance: | ±5% |
Color: | Black | ||
High Light: | sunpower solar panels,commercial solar panels |

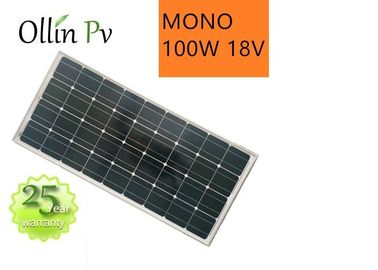

12V Solar Panel 50w 100w 150watt monocrystalline Solar Panel Hotel heater
Features
1) Module efficiency : 17.5%
2) Warranty : 25 year power warranty: 95% power -- 5 years, 90% power --10 years, 80% power -- 25
years
3) Tolerance : Guatanteed tolerance,different model with diffetent tolerance,and delivers higher outputs
reliably, High reliability with guaranteed ± 3% output power tolerance.
4) Excellent performance under low light conditions
5) High efficiency, waterproof , stand heavy rain and snow
6) Anti-reflective, hydrophobic layer with light absorption and minimal surface dust
7) Rich selection of solar power
Specifications:
Nominal power 100W
Operating temperature -40℃ to+85℃
Maximum system voltage 1000VDC(IEC)/600VDC(UL)
Series fuse rated value 20A
Power tolerance ±3%
Cell specification 125×125mm
Arrangement quantity 36(4×9)
Solar panel dimension 1200*540*30mm
Weight 8.0kg
Glass specification 3.2mm(0.13inch) tempered glass
Frame Anodised aluminium alloy
Rated operating temperature 45±2℃
Pmax temperature parameter -(0.48±0.05)%/℃
Voc temperature coefficient: -(0.34±0.1)%/℃
Isc temperature coefficient 0.04±0.01%/℃
Notic:Data under standard testing condition (STC):1000W/㎡,AM1.5,25℃.
OLLIN-100M-120M | |||||||
Monocrystalline Solar Module | |||||||
Mechanical Data | |||||||
Cell type | Mono125mm*125mm | ||||||
No.of cells | 36 in series(4*9) | ||||||
Dimensions | 1200*550*30mm | ||||||
Weight | 7kg | ||||||
Electrical Data | |||||||
Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5) | |||||||
Power | 100W | 110W | 120W | ||||
Open circuit voltage(Voc) | 21.5V | 21.5v | 21.6V | ||||
Max. power voltage(Vmp) | 17.46V | 17.48V | 17.5V | ||||
Short circuit current(Isc) | 5.98A | 6.6A | 7.2A | ||||
Max. power current(Imp) | 5.56A | 6.1A | 6.67A | ||||
A grade power Tolerance | ± 3% | ||||||
Max.system voltage | 1000V | ||||||
Operating temp. | —40℃~80℃ | ||||||
Temperature coefficients of Pmax | -0.47% /℃ | ||||||
Temperature coefficients of Voc | -0.38% /℃ | ||||||
Temperature coefficients of Isc | +0.1% /℃ |
