White Frame 12V Solar Panel 3.2mm High Transmission Tempered Glass Front Glass

White Frame 12V Solar Panel 3.2mm High Transmission Tempered Glass Front Glass
White Frame 12V Solar Panel 3.2mm High Transmission Tempered Glass Front Glass

Large Image :  White Frame 12V Solar Panel 3.2mm High Transmission Tempered Glass Front Glass

Product Details:
Place of Origin: zhejiang Pr. China
Brand Name: OLLIN PV
Certification: CE
Model Number: OL-36M-50
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece/unit
Price: Negotiable
Packaging Details: 2PC per carton,
Delivery Time: 20DAYS
Supply Ability: 2300PCS PER WEEK

White Frame 12V Solar Panel 3.2mm High Transmission Tempered Glass Front Glass

Description
Material: Polycrystalline Silicon Color: Black
Dimension: 670*540*30mm Front Glass: 3.2mm High Transmissiontempered Glass
Frame: Anodized Aluninium Alloy Maximum System Voltage: DC1000V
Power Tolerance: ±5%
High Light:

caravan solar panels

,

commercial solar panels

22.67 Open circuit voltage 12V Solar Panel street light system 50w 60w 80watt white frame poly Solar Panel



Features




1) Nominal 12v/24v DC for standard output;

2) Outstanding low-light performance;

3) Rugged design to withstands high wind preasure and snow load, easy installaion;

4) Aesthetic appearance;

5) Design to meet unique design of customer;

6) 5 year material and workmanship warranty. 25 year power warranty;

7) High Efficiency, waterproof ,stand heavy rain and snow;


8) Perfect for 12-volt battery charging or multiple panels can be wired in series for 24/48-volt battery



charging or for grid-tied applications



9) Diodes are pre-installed in junction box and a pair of 31-inch cables with MC4 connectors comes with the



panel automatically



10) Withstand high wind (2400Pa) and snow loads (5400Pa); resistant aluminum frame which allows the



panels to last for decades



11) High modules conversion efficiency. Ideal output: 500 watt hours per day (depends on sunlight



availability)



Specifications:


OLLIN-40M-60M
Polycrystalline Solar Module

Mechanical Data
Cell type poly
No.of cells 36 in series(4*9)

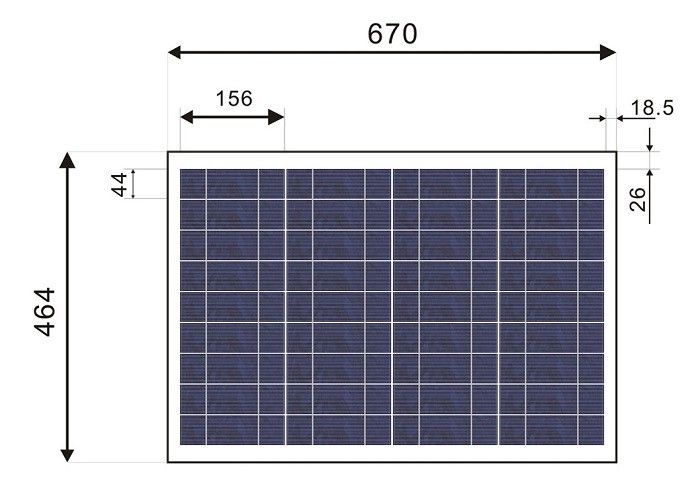

Dimensions 670*540*30mm
Weight 5kg

Electrical Data
Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5)
Power 40W   50W   120W
Open circuit voltage(Voc) 21.5V   21.5v   21.6V
Max. power voltage(Vmp) 17.46V   17.48V   17.5V
Short circuit current(Isc) 2.52A   3.08A   3.33A
Max. power current(Imp) 2.22A   2.78A   2.67A
A grade power Tolerance ± 3%
Max.system voltage 1000V
Operating temp. —40℃~80℃
Temperature coefficients of Pmax -0.47% /℃
Temperature coefficients of Voc -0.38% /℃
Temperature coefficients of Isc +0.1% /℃

 White Frame 12V Solar Panel 3.2mm High Transmission Tempered Glass Front Glass 0






SOLAR POWER FOR TELECOMMNUCATION NETWORKS



Solar power for telecommunication networks is another application for solar photovoltaic. The



telecommunication BTS towers have power supply from Diesel Generators in areas where no grid is



available and have back up diesel generators where grid is available. Operational Expense of power



generator is very high. The best replacement of the diesel back up is the solar power which is clean energy.



These systems can be hybrid (solar and wind) where wind is available. Many telecom operators have



installed solar systems and they are very much satisfied and many are still in the process of planning for



purchase of solar power systems. Again designing of solar solution for BYS towers is a specialized job.







SOLAR POWER FOR REMOTE TERMINAL AND SURVELLIANCE UNITS



In Oil and gas production and processing plants, the parameters are controlled and monitored remotely



through remote computerized terminal units. In surveillance systems, mostly the monitoring is remote and



solar power application in this area is very reliable and cost effective.
