Product Details:
|
Cell Material: | Polycrystalline Silicon Solar Cell | Cell Array: | 4*9 |
---|---|---|---|
Cell Color: | Blue | Frame: | Anodized Aluminum Alloy |
Front Sheet: | High Transmissions Low Iron Tempered Glass | Packing: | 2pcs/CTN, 1700PCS/40hq Container |
Main Market: | Asia Africa Southeast Asia | Junction Box: | JB With 0.9m Wire And Connector |
High Light: | polysilicon solar panel,poly solar panel |

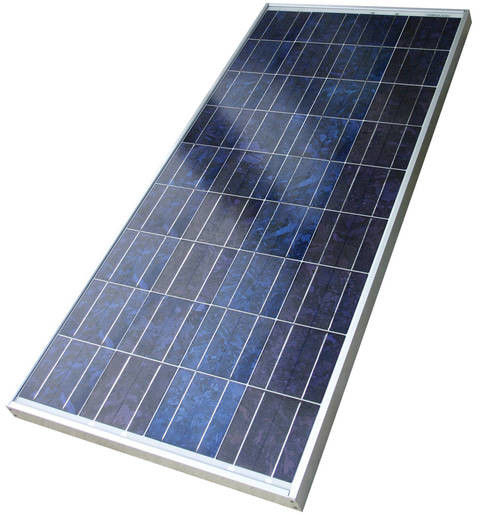

140w Polycrystalline Solar Panel charge for off gtid street light system battery solar cells
Product field:
1. Gird-connected power generation system
2. Off-grid power hotel heater generation system
3. Building-integrated power generation facilities
Products information
Module Type | OLPV130W | OLPV140W | OLPV150W | OLPV160W | OLPV165W |
Maximum power | 130 W | 140 W | 150 W | 160 W | 165 W |
Max power voltage | 17.50 V | 17.70 V | 17.90 V | 18.10 V | 18.20 V |
Max power current | 7.43 A | 7.92 A | 8.38 A | 8.84 A | 9.06 A |
Open circuit voltage | 21.50 V | 21.70 V | 21.90 V | 22.10 V | 22.30 V |
Short circuit current | 7.96 A | 8.49 A | 9.01 A | 9.53 A | 9.74 A |
Module Efficiency | 13.13% | 14.14% | 15.15% | 16.16% | 16.67% |
Power Tolerance | -0~+5W | -0~+5W | -0~+5W | -0~+5W | -0~+5W |
Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5 | |||||
Nominal Operating Cell Temperatur | 45 ± 2℃ | ||||
Temperature coefficients of Isc | +0.049% /℃ | ||||
Temperature coefficients of Voc | -0.340% /℃ | ||||
Temperature coefficients of Pmax | -0.430% /℃ | ||||
Solar Cell | Poly solar cells 156x156 mm | ||||
Front Cover | 3.2 mm thick, tempered glass | ||||
Back Cover | TPT (Tedlar-PET-Tedlar) | ||||
Encapsulant | EVA (ethylene vinyl acetate) | ||||
Frame | Double-layer anodized aluminium alloy | ||||
Junction Box | IP65 rated | ||||
Maximum System Voltage | DC1000V (IEC) | ||||
Maximum Series Fuse | 15 A | ||||
Operating Temperature | -40℃~+85℃ | ||||
Storage Temperature | -40℃~+85℃ | ||||
Max. Wind Load / Max. Snow Load | 2400Pa / 5400Pa | ||||
Application Class | Class A | ||||
Packing configuration | Carton.Customers packing requirement is acceptable. |
Product features:
You own the sun. Well, not exactly, but you do have the right to its power. Why not put it good use? With solar technology, you can harness the sun's energy and turn your rooftop into a power plant.
1. With advanced materials and equipment, our modules are designed and manufactured
in consistency with the IEC 61215:1993 standards which can guarantee the excellent electrical
performance and the product life of 25 years.High-transmittance low-iron tempered glass, anti-aging EVA, excellent weathering resistance TPT,
2. High quality anodized aluminum frame is suitable for strong wind resistance and mountain terrain., beautiful appearance
3. Wind resistance, pressure resistance, high conversion efficiency
SOLAR PV SYSTEM
Solar PV system includes different components that should be selected according to your system type, site location and applications. The major components for solsr PV system are solar charge controller, inverter, battery bank, auxiliary energy sources and loads (appliances).
Why choose us?
Advantages we have:
A: Experienced and sophisticated light products supplier.
B: Professional design team and sales department for your any requirements.
C: Alibaba golden supplier, factory recognized by CE, ISO9001, RoHS.
D: 7/24 service for you. All the question will be dealt within 24 hours.
Benefits you get:
A: Stable quality----Using the best material and technology.
B: Lower price----Not the cheapest but the lowest in the same quality products.
C: Good service----Satisfying service before and after service.
D: Delivery time----20-30days for mass production.
