| Brand Name: | OLLIN PV |
| Model Number: | OL-36M-50 |
| MOQ: | 1 piece/unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

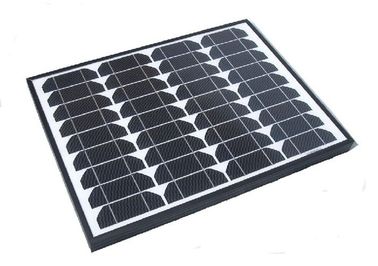

60watt black frame monocrystalline silicon 12V Solar Panel 12 Volt Battery Charger Off Grid, RV, Boat, Gate
Features
1) Nominal 12v/24v DC for standard output;
2) Outstanding low-light performance;
3) Rugged design to withstands high wind preasure and snow load, easy installaion;
4) Aesthetic appearance;
5) Design to meet unique design of customer;
6) 5-year material and workmanship warranty, 25 year module output warranty;
7) High Efficiency; The modules can withstand high wind-pressure, snow loads and extreme temperatures
Specifications:
| OLLIN-40M-60M | |||||||
| monocrystalline Solar Module | |||||||
| Mechanical Data | |||||||
| Cell type | mono | ||||||
| No.of cells | 36 in series(4*9) | ||||||
| Dimensions | 670*540*30mm | ||||||
| Weight | 5kg | ||||||
| Electrical Data | |||||||
| Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5) | |||||||
| Power | 40W | 50W | 120W | ||||
| Open circuit voltage(Voc) | 21.5V | 21.5v | 21.6V | ||||
| Max. power voltage(Vmp) | 17.46V | 17.48V | 17.5V | ||||
| Short circuit current(Isc) | 2.52A | 3.08A | 3.33A | ||||
| Max. power current(Imp) | 2.22A | 2.78A | 2.67A | ||||
| A grade power Tolerance | ± 3% | ||||||
| Max.system voltage | 1000V | ||||||
| Operating temp. | —40℃~80℃ | ||||||
| Temperature coefficients of Pmax | -0.47% /℃ | ||||||
| Temperature coefficients of Voc | -0.38% /℃ | ||||||
| Temperature coefficients of Isc | +0.1% /℃ | ||||||
Company Profile:
Continuously manufacturing PV modules since 2008, OLLIN-PV is one of the most experienced module
makers in the industry. More than 8 years of operating data support OLLIN-PV’s reputation as the best
overall quality, performance, and value for solar investors. The cutting-edge SN-series leads the industry
again in advanced design, construction, and performance. The SN-series is the ideal module for any system
size in any given environment. With the quality to last the lifetime of the PV system, OLLIN-PV’s SN-series
provides the confidence and assurance to each and every one of our customers.
What we can provide: High quality and very competitive price, fast delivery and best service!
A trustable and reliable supplier for your business. We have already exported our products around the world
includes Russian, Middle East, South American, Southeast Asia and so on.
For any details, please don't hesitate to contact me any time!
1, We use the carton and inside use the foma to protect the solar panel.
2, usually we suggest coustomer to make the wooden frame.
3, if u order more,we can delivery to your NINGBO Warehose by free.
4, shipping via sea,express,air-cargo optional.
|
|
