| Brand Name: | OLLIN PV |
| Model Number: | OL-36M-90 |
| MOQ: | one unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

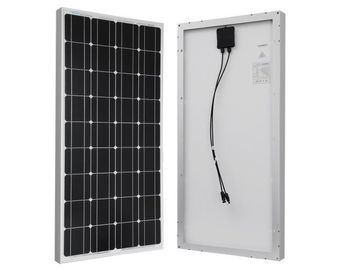

Size 1200*540*30mm 90w/18v Monocrystalline Solar Module OEM/ODM solar panel for waterproof pump
FEATURES:
High efficiency Grade A solar cells.
Advanced cell encapsulation technology.
High transmittance,low iron tempered glass with 3.2mm thickness,unique esthetic
appearance of cells.
High efficiency silicon solar cells,more power in peak hours through cells.
Optimized module performance with nominal voltage 36v/30v/24v/18v/12v DC.
Bypass diodes to avoid hot spot effect.
High salt mist and ammonia resistance.
Attractive,stable,heavy duty anodized aluminum frames with convenient mounting,for high
wind pressure and snow load.
Strong,lightweight aluminum frame design with reinforced sealing and load hold to withstand
freezing and warping,and stand against high wind.
Pre-cabled with fast-connecting system,customer-desired packing.
Solar panel with TUV,CE,UL,ETL,CQC,PV cycle and other certificates.
Standard Test Condition(STC):Irradiance 1000W/㎡,AM 1.5,and 25±2℃cell temperature.
| OLLIN-80M-100M | |||||||
| Monocrystalline Solar Module | |||||||
| Mechanical Data | |||||||
| Cell type | Mono125mm*125mm | ||||||
| No.of cells | 36 in series(4*9) | ||||||
| Dimensions | 1200*540*30mm | ||||||
| Weight | 6kg | ||||||
| Electrical Data | |||||||
| Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5) | |||||||
| Power | 80WM | 90WM | 100WM | ||||
| Open circuit voltage(Voc) | 21.5V | 21.5v | 21.6V | ||||
| Max. power voltage(Vmp) | 17.46V | 17.48V | 17.5V | ||||
| Short circuit current(Isc) | 4.78A | 5.4A | 5.99A | ||||
| Max. power current(Imp) | 4.4A | 5.1A | 5.55A | ||||
| A grade power Tolerance | ± 3% | ||||||
| Max.system voltage | 1000V | ||||||
| Operating temp. | —40℃~80℃ | ||||||
| Temperature coefficients of Pmax | -0.47% /℃ | ||||||
| Temperature coefficients of Voc | -0.38% /℃ | ||||||
| Temperature coefficients of Isc | +0.1% /℃ | ||||||
Company Profile:
Continuously manufacturing PV modules since 2008, OLLIN-PV is one of the most
experienced module makers in the industry. More than 8 years of operating data support
OLLIN-PV’s reputation as the best overall quality, performance, and value for solar investors.
The cutting-edge SN-series leads the industry again in advanced design, construction, and
performance. The SN-series is the ideal module for any system size in any given
environment. With the quality to last the lifetime of the PV system, OLLIN-PV’s SN-series
provides the confidence and assurance to each and every one of our customers.
WARRANTY:
5 years quality guarantee.
The output power is not less than 90% in 10 years.
The output power is not less than 80% in 25 years.
Packing:Cartons and pallets or packed as customers' request
Payment terms:T/T,L/C.
OEM/ODM
