Product Details:
|
Material: | Monocrystalline Silicon | Color: | Black |
---|---|---|---|
Dimension: | 1100*670*30mm | Front Glass: | 3.2mm High Transmissiontempered Glass |
Frame: | Anodized Aluninium Alloy | Weight: | 8.0kg |
Junction Box: | Junction Box | ||
High Light: | mono silicon solar panels,monocrystalline solar cells |

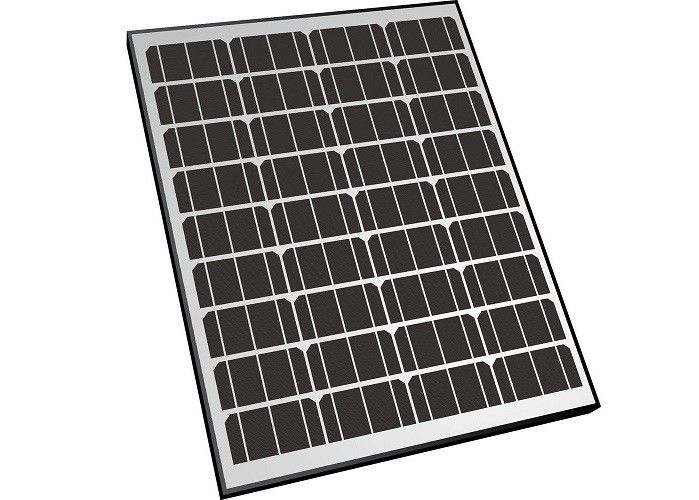

90Watt Monocrystalline Solar Module off-Gird water pump power for generation system tranffic signal light , security
Solar Panel Characteristics
1) high reliability with guaranteed +/-3% output power tolerance
2) The modules can withstand high wind-pressure,snow loads and extreme temperatures
3) Bypass diodes to minimize power loss with shading
4) High and stable conversion efficiency to ensure the highest quality
5) High efficiency crystalline silicon cells
6) High transmission low iron tempered glass,strong mechanical resistance
7) Standard waterproof junction box,with bypass diode
8) High endurance to different atrocious weather
9) Custom designed modules according to clients' requirement
Item number | OL-M90W |
Power | 90W |
Solar cell | Monocrystalline |
Number of cell | 36(9*4) |
Moudule size | Customized |
Optimum operating Voltage(Vmp) | 18V |
Optimum operating current(Imp) | 5A |
Open-Circuit Voltage(Voc) | 21.6V |
Open-Circuit Currant(Isc) | 5.2A |
Module efficiency | 13.9% |
Weight | 9.6KG |
Thickness glass | 18mm tempered glass |
Frame | Anodized aluminum alloy |
Laminating Material | EVA |
Backsheet material | TPT |
Junction box | Ip65 |
Connector | Mc4 connectors with cable |
Operating Module Temperature | —40℃to +80℃ |
Maximum System Voltage | 1000V DC |
Maximum Series fuse Rating | 15A |
Power Tolerance | ±3% |
Irradiance 1000W/m2,Module temperature 25℃,Am=1.5 |
Components & Mechanical Data | |
Front Glass Thickness (mm) | High Transparency Tempered Glass 3.2mm |
Junction Box Type | Pass the TUV Certificate PPO(Black/IP65) |
Output Cables | 4mm²/0.9m |
Frame (Material Corners, etc.) | Aluminum-alloy |
Encapsulation Material | EVA(0.50±0.03 mm thickness) |
Back Foil | White TPT(0.50±0.03 mm thickness) |
Fixing Adhesive | Silicone Sealant ( White) |
Temperature Range (°C) | -40°C to +90°C |
Max Load Capacity(Kpa) | 2.4wind load/5.4 snow load |
Values at Standard Test Conditions | |
STC | Irradiance:1000W/ m² |
Module Temperature | 25°C |
AM | 1.5 |
Quality and Warranty
For a period of twenty‐five (25)years commencing on the Warranty Start Date, loss of power
output of the nominal power output measured at Standard Test Conditions (STC) for the
Product(s) shall not exceed:
For Polycrystalline A grade solar cell, 3% in the first year, thereafter 0.66% per year, ending
with 81% in the 25 th year after the Warranty Start Date;
The Warranty Start Date shall be defined as the date of the Bill of Lading date
3Years Manufacturing Warranty
10Years Warranty 90% Power Output
25Years Warranty 80% Power Output
