Product Details:
|
| Back Sheet: | TPE Quality Plastic | Main Market: | Asia Africa Southeast Asia |
|---|---|---|---|
| Cell Material: | Polycrystalline Silicon | Junction Box: | JB With 0.9m Wire And Connector |
| Cell Array: | 6*10 | Cell Color: | Blue |
| Frame: | Anodized Aluminum Alloy | Front Sheet: | High Transmissions Low Iron Tempered Glass |
| High Light: | multicrystalline solar panels,poly solar panel |
||

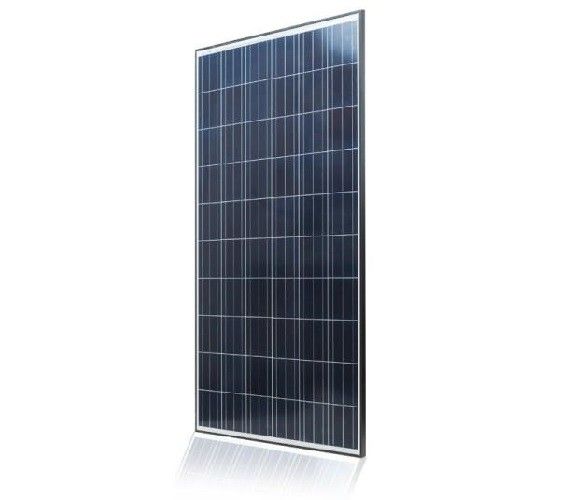

Solar panel constituent part :
1. Stalinite;
2. EVA;
3. Solar cell;
4. Backboard(PET);
5. Aluminium alloy;
6. Juntion box;
7. Silica gel
Solar panel is made of light energy into electricity for charge battery ,solar panel working procesing :Solar Panel---Solar Controller---Battery---Inverter---AC Appliance .
Specifications:
| OLLIN-240P-260P | |||||||
| Polycrystalline Solar Module | |||||||
| Mechanical Data | |||||||
| Cell type | Poly 156mm*156mm | ||||||
| No.of cells | 60 in series(6*10) | ||||||
| Dimensions | 1640*992*40mm | ||||||
| Weight | 18.8kg | ||||||
| Electrical Data | |||||||
| Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5) | |||||||
| Power | 240WP | 245WP | 250WP | 255WP | 260WP | ||
| Open circuit voltage(Voc) | 36.3v | 36.46v | 36.54v | 36.88v | 36.9V | ||
| Max. power voltage(Vmp) | 29.64V | 29.68V | 29.74V | 29.86V | 29.94V | ||
| Short circuit current(Isc) | 8.7A | 8.8A | 8.96A | 9.2A | 9.35A | ||
| Max. power current(Imp) | 8.00A | 8.17A | 8.3A | 8.5A | 8.66A | ||
| A grade power Tolerance | ± 3% | ||||||
| Max.system voltage | 1000V | ||||||
| Operating temp. | —40℃~80℃ | ||||||
| Temperature coefficients of Pmax | -0.47% /℃ | ||||||
| Temperature coefficients of Voc | -0.38% /℃ | ||||||
| Temperature coefficients of Isc | +0.1% /℃ | ||||||
| Solar Cell | Poly solar cells 156x156 mm | ||||
| Front Cover | 3.2 mm thick, tempered glass | ||||
| Back Cover | TPT (Tedlar-PET-Tedlar) | ||||
| Encapsulant | EVA (ethylene vinyl acetate) | ||||
| Frame | Double-layer anodized aluminium alloy | ||||
| Junction Box | IP65 rated | ||||
| Maximum System Voltage | DC1000V (IEC) | ||||
| Maximum Series Fuse | 15 A | ||||
| Operating Temperature | -40℃~+85℃ | ||||
| Storage Temperature | -40℃~+85℃ | ||||
| Max. Wind Load / Max. Snow Load | 2400Pa / 5400Pa | ||||
| Application Class | Class A | ||||
| Packing configuration | Carton.Customers packing requirement is acceptable. |
High efficiency
High module conversion efficiency up to 17% through innovative manufacturing technology. Manufacturing with CE standard, could widely used in solar power station, building, solar street lighting, traffic.etc.
Solar panel is made up of high quality solar cell with high effciency and transmission rate, low iron tempered glass, anti-aging EVA, high flame resistant TPT and anodized aluminum alloy.
FAQ:
Q1 Are you a factory or trading company?
A Yes, we are factory, supplying OEM/ODM service.
Q2 Can you accept OEM service?
A Yes, we can. Qty is not the only standard , more qty, less cost.
Q3 How about your after sales-service?
A 1.Guarantee time: one year, but solar panel 10 years
2.Spare parts:1% spare parts will be shipped with your order.
Q4 How about your payment terms?
A We accept T/T, LC
Q5 What certification do you have?
A 1.CE, 2.According to your need , do the certification or report , if you have a big order.
Q6 How many day about delivery time?
A 1.Sample delivered in 3-5 days.
2.Order delivered in 15-20 days.
Q7 Which port shipping goods?
Ningbo port/ shanghai port/yiwu port
Company Profile:
We are a professional manufacturer specialized in Solar Panels with more than 8 years of experience. Our main products include: Mono and Poly Solar Panel, Solar power system, Solar charger controller, Inverters, Solar LED lights, and so on.
What we can provide: High quality and very competitive price, fast delivery and best service!
A trustable and reliable supplier for your business. We have already exported our products around the world includes Russian, Middle East, South American, Southeast Asia and so on.
For any details, please don't hesitate to contact me!
