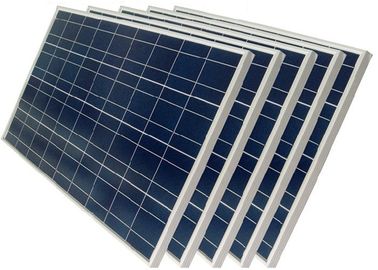

Polycrystalline Solar Module / 110 Watt House Solar Panels Providing Special Design

Polycrystalline Solar Module / 110 Watt House Solar Panels Providing Special Design
Polycrystalline Solar Module / 110 Watt House Solar Panels Providing Special Design

Large Image :  Polycrystalline Solar Module / 110 Watt House Solar Panels Providing Special Design

Product Details:
Place of Origin: zhejiang Pr, China
Brand Name: OLLIN PV
Certification: CE ROSH ISO
Model Number: OL-36P-110
Payment & Shipping Terms:
Minimum Order Quantity: one unit
Price: Negotiable
Packaging Details: Carton.Customers packing requirement is acceptable.
Delivery Time: 20DAYS
Supply Ability: 1500UNITS PER WEEK

Polycrystalline Solar Module / 110 Watt House Solar Panels Providing Special Design

Description
Cell Material: Polycrystalline Silicon Cell Array: 4*9
Solar Cell: Poly Solar Cells Frame: Anodized Aluminum Alloy
Front Sheet: High Transmissions Low Iron Tempered Glass Back Sheet: TPE Quality Plastic
Main Market: Asia Africa Southeast Asia Junction Box: JB With 0.9m Wire And Connector
High Light:

multicrystalline solar panels

,

polysilicon solar panel

Fish pond and water pump system 110Watt Polycrystalline Solar Panel



Product features:



1. Rated Maximum Power 110W



2. Current at Pmax ( lmp) 6.11A



3. Volatage at Pmax (Vmp) 17.4V



4. Short- Circuit Current ( lsc) 6.59A



5. Open- Circuit Voltage( Voc) 21.4V



6. Max System V 1000V



7. Max Senes Fuse Rating 10A



8. Application Class A



9. Nominal Operating Cell Temp -40 ℃ TO + 85℃



10. Widely used for camping ,travel,adventure and other fields of outdoors and charge for DC 12v / 24v / 48v battery.Included controller, cable, alligator clip, connectors, protection conners and strong supporting leg single bag.



11. Providing special design.



12. Module efficiency : 16%



13.Warranty : 12 years/90%,25 years/80%, guaranteed 10years material and workmanship



14. Tolerance : Guatanteed tolerance,different model with diffetent tolerance,and delivers higher outputs reliably



15. Excellent performance under low light conditions



16. Load test: module certified to wind and snow loads



17. Anti-reflective,hydrophobic layer with light absorption and minimal surface dust



Specifications:



OLLIN-100P-120P
Polycrystalline Solar Module

Mechanical Data
Cell type Poly156mm*114mm
No.of cells 36 in series(4*9)
Dimensions 1100*670*30mm
Weight 7kg

Electrical Data
Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5)
Power 100WP   110WP   120WP
Open circuit voltage(Voc) 21.5V   21.5v   21.6V
Max. power voltage(Vmp) 17.46V   17.48V   17.5V
Short circuit current(Isc) 5.98A   6.6A   7.2A
Max. power current(Imp) 5.56A   6.1A   6.67A
A grade power Tolerance ± 3%
Max.system voltage 1000V
Nominal Operating Cell Temperatur 45 ± 2℃
Temperature coefficients of Pmax -0.47% /℃
Temperature coefficients of Voc -0.38% /℃
Temperature coefficients of Isc +0.1% /℃
Solar Cell Poly solar cells 156x156 mm
Front Cover 3.2 mm thick, tempered glass
Back Cover TPT (Tedlar-PET-Tedlar)
Encapsulant EVA (ethylene vinyl acetate)
Frame Double-layer anodized aluminium alloy
Junction Box IP65 rated
Maximum System Voltage DC1000V (IEC)
Maximum Series Fuse 15 A
Operating Temperature -40℃~+85℃
Storage Temperature -40℃~+85℃
Max. Wind Load / Max. Snow Load 2400Pa / 5400Pa
Application Class Class A
Packing configuration Carton.Customers packing requirement is acceptable.

Polycrystalline Solar Module / 110 Watt House Solar Panels Providing Special Design 0



How Do Solar Panels Generate Electricity?





PV solar panels generate direct current (DC) electricity. With DC electricity, electrons flow in one direction



around a circuit. This example shows a battery powering a light bulb. The electrons move from the negative



side of the battery, through the lamp, and return to the positive side of the battery.



With AC (alternating current) electricity, electrons are pushed and pulled, periodically reversing direction,



much like the cylinder of a car’s engine. Generators create AC electricity when a coil of wire is spun next to



a magnet. Many different energy sources can “turn the handle” of this generator, such as gas or diesel fuel,



hydroelectricity, nuclear, coal, wind, or solar.



AC electricity was chosen for the U.S. electrical power grid, primarily because it is less expensive to



transmit over long distances. However, solar panels create DC electricity. How do we get DC electricity into



the AC grid? We use an inverter.



FAQ



Q1 Are you a factory or trading company?



A Yes, we are factory, supplying OEM/ODM service.



Q2 Can you accept OEM service?



A Yes, we can. Qty is not the only standard , more qty, less cost.



Q3 How about your after sales-service?



A 1. Guarantee time: one year, but solar panel 10 years



Q4 How about your payment terms?



A We accept T/T, LC



Q5 What certification do you have?



A 1. CE, 2. According to your need , do the certification or report , if you have a big order.



Q6 How many day about delivery time?



A 1. Sample delivered in 3-5 days.



2. Order delivered in 15-20 days.



Q7 Which port shipping goods?



Ningbo port/ shanghai port/yiwu port
