IP67 Protection 100 Watt Polycrystalline Solar Panel For Water Pump System

IP67 Protection 100 Watt Polycrystalline Solar Panel For Water Pump System
IP67 Protection 100 Watt Polycrystalline Solar Panel For Water Pump System

Large Image :  IP67 Protection 100 Watt Polycrystalline Solar Panel For Water Pump System

Product Details:
Place of Origin: zhejiang Pr, China
Brand Name: OLLIN PV
Certification: CE ROSH ISO
Model Number: OL-36P-100
Payment & Shipping Terms:
Minimum Order Quantity: one unit
Price: Negotiable
Packaging Details: Carton.Customers packing requirement is acceptable.
Delivery Time: 20DAYS
Supply Ability: 1500UNITS PER WEEK

IP67 Protection 100 Watt Polycrystalline Solar Panel For Water Pump System

Description
Cell Material: Polycrystalline Silicon Cell Array: 4*9
Solar Cell: Poly Solar Cells Frame: Anodized Aluminum Alloy
Front Sheet: High Transmissions Low Iron Tempered Glass Back Sheet: TPE Quality Plastic
Main Market: Asia Africa Southeast Asia Junction Box: JB With 0.9m Wire And Connector
High Light:

multicrystalline solar panels

,

polysilicon solar panel

100Watt Polycrystalline Solar Panel used for Fish pond and water pump system



Product features:



Solar Cell

> High Efficiency PV Cells

> Appearance Consistency

> Anti-PID



Glass

> Anti-reflective glass

> Translucency of normal luminance is increased by 2%

> Module efficiency is increased by 2%

> Self-cleaning function

> Service life is as long as 25 years(30 years optional)



Frame

> Conventional frame

> Silver or black frames are optional

> Boost bearing capability and prolong service life

> Serrated-clip design tensile strength

> Seal-lip design-glue injection



Junction box

> Conventional standalone edition and engineering custom edition

> Quality diode ensures module running safety

> IP67 protection level

> Heat dissipation

> Long service life





Specifications:



OLLIN-100P-120P
Polycrystalline Solar Module

Mechanical Data
Cell type Poly156mm*114mm
No.of cells 36 in series(4*9)
Dimensions 1100*670*30mm
Weight 7kg

Electrical Data
Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5)
Power 100WP   110WP   120WP
Open circuit voltage(Voc) 21.5V   21.5v   21.6V
Max. power voltage(Vmp) 17.46V   17.48V   17.5V
Short circuit current(Isc) 5.98A   6.6A   7.2A
Max. power current(Imp) 5.56A   6.1A   6.67A
A grade power Tolerance ± 3%
Max.system voltage 1000V
Nominal Operating Cell Temperatur 45 ± 2℃
Temperature coefficients of Pmax -0.47% /℃
Temperature coefficients of Voc -0.38% /℃
Temperature coefficients of Isc +0.1% /℃
Solar Cell Poly solar cells 156x156 mm
Front Cover 3.2 mm thick, tempered glass
Back Cover TPT (Tedlar-PET-Tedlar)
Encapsulant EVA (ethylene vinyl acetate)
Frame Double-layer anodized aluminium alloy
Junction Box IP65 rated
Maximum System Voltage DC1000V (IEC)
Maximum Series Fuse 15 A
Operating Temperature -40℃~+85℃
Storage Temperature -40℃~+85℃
Max. Wind Load / Max. Snow Load 2400Pa / 5400Pa
Application Class Class A
Packing configuration Carton.Customers packing requirement is acceptable.

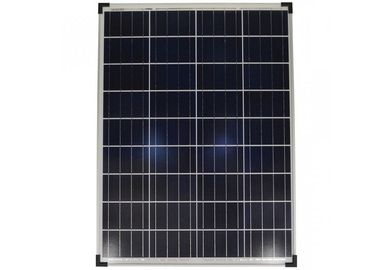

IP67 Protection 100 Watt Polycrystalline Solar Panel For Water Pump System 0

  • Waterproof IP-65 Rated Junction Box : Advanced water and dust proof level (complete protection against environmental particles and low pressure water jets).
  •
  • Resistance to Salt Corrosion and Humidity
  •
  • Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa), Lightweight anodized aluminum frame and reinforced Safety and anti-Reflection coated glass 3.2mm thick (tempered + patterned)
  •
  • 25-year transferable power output warranty: 5-year/95% efficiency rate, 10-year/90% efficiency rate, 25-year/80% efficiency rate 2-year material and workmanship warranty
  •
  • Water proof IP22 design, protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water.
  •
  • 12/24V system automatic detect.
  •
  • PWM charging available,3-stage charging algorithm: impulse, bulk and float
  •
  • Protection:Reverse battery pole connection protection, Lightning protection
  •
  • Adjustable timer and light sensor
  •
  • small self consumption, 2mA at 12V system







WHY CHOOSE US?



1. Excellent efficiency, Easy Installation & Maintenance





2. Outstanding performance in Low-Light





3. High transparent, Low-Iron, Tempered Glass





4. Ability to withstand High Wind-Pressure and Snow-Load





5. Advanced module sealing technology to eliminate leakage and frame deformation





6. Ability to meet customized customer's specific requirements
