Product Details:
|
| Solar Panel: | 190W Solar Panel | Load Power (W): | 1000W |
|---|---|---|---|
| Inverter: | Off Grid Pure Sine Wave | Charging Time: | 8-10 Housr To Charge The Battery Fully |
| Battery: | 12V/12AH SMF Lead Acid Battery | Application: | Water Pump |
| High Light: | residential solar electricity systems,complete solar power system |
||
Description:

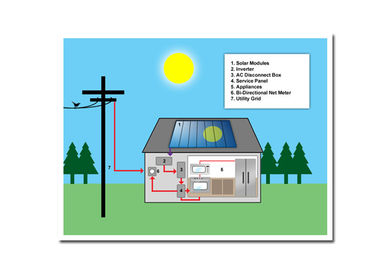

). Sun goes into the panels DC Electricity comes out
). A box of electronics called an Inverter takes the not-very-useful DC electricity and converts it into 240V
AC power that is compatible with our appliances
). Your freshly backed AC electricity goes thru a disconnect switch(just in case)
). Your solar electricity connects into your home’s wiring at your existing fuse-box
). Your friendly utility provides a new “Import/Export” meter to make sure that your new system can export
power when you don’t use it all
| 1.1KW Grid Tied Solar System Specification | ||
| SOLAR PANEL | ||
| Solar panel power Pm | 6*190WP | |
| Power allowance | ±3% | |
| Optimized working voltage Vm | 36.6V | |
| Optimized working current Im | 5.19A | |
| Open circuit voltage Voc | 45.1V | |
| Short circuit current Isc | 5.57A | |
| GRID TIED INVERTER | ||
| Inverter Input (DC) | ||
| Max. DC power | 1100W | |
| Max. DC voltage | 500V | |
| Max. input current | 8.8A | |
| Number of MPP trackers/Strings per MPP tracker | 1 1 | |
| MPPT voltage range (at rated power) | 120～425V | |
| Shutdown voltage/Start voltage | 70/120V | |
| Inverter Output (AC) | Inverter Output (AC) | |
| AC nominal power | 1000W | |
| Max. AC power | 1000W | |
| Max. AC current | 5.5A | |
| Nominal AC voltage / range | 230 / 180~270V | |
| AC grid frequency / range | 50 / 47~52Hz | |
| Power factor (cosφ) | 1 | |
| Total harmonic distortion (THDi)(at nominal power) | <3% | |
| Inverter Efficiency | Inverter Efficiency | |
| Max. efficiency | 96.60% | |
| Euro efficiency | 95.50% | |
| MPPT efficiency | 99.90% | |
| Inverter General data | ||
| Dimensions (W / H / D) | 285*385*145mm | |
| Weight [kg] | 15Kg | |
| Operating temperature range | -20～+60 (derating at 45 °C) | |
| Ingress protection | IP65 | |
| Topology | transformerless | |
| Internal consumption(night) | 0 | |
| Cooling concept | Convection | |
| Noise (typical) | <30 dB | |
| LCD display | Backlight, 16*2 Character LCD | |
| Communication port | RS232 | |
| SOLAR PANEL MOUNTING(Pitch roof ) | ||
| Rail | 2600mm*4pcs | |
| Hook | 12pcs | |
| Middle clamp | 10pcs | |
| End clamp | 4pcs | |
| Connect of rail | 2pcs | |
| Grounding lug (Optional) | 5pcs | |
| Earthing clips (Optional) | 5pcs | |
| ELERTRIC BOX (Optional) | AC/DC Circuit Breakers,Lighting arrestors, Electric meter | |
WHY GO SOLAR?
CONTROL ENERGY COSTS
With solar you can secure predictable electricity costs for years to come.
SAVE MONEY
In most states, solar costs less than energy from the utility, so you can save on your bill.
HELP THE ENVIRONMENT
Solar creates 91% less CO2 pollution than natural gas and 96% less CO2 than coal.
ENERGY INDEPENDENCE
Clean solar energy provides us with an unlimited, reliable source of energy.
WHAT IS A SOLAR POWER SYSTEM?
Also called a solar electric system or photovoltaic PV system, solar power systems use solar panels to
collect photons of light from the sun and use them to create an . To learn more about solar PV systems,
please our page How Do Solar Power Systems Work.
A photovoltaic PV solar power system is a collection of components which, when used together, produce
electricity from sunlight that can be used for a variety of purposes. There are several different types of
solar photovoltaic systems including the following:
Grid-tie ( no battery )
Grid-tie ( with battery storage )
Off-grid ( no battery )
Off-grid ( with battery, DC-only )
Off-grid ( with battery AC + DC )
