High Transmittance Black Solar PV Panels / Solar System Solar Panels

High Transmittance Black Solar PV Panels / Solar System Solar Panels
High Transmittance Black Solar PV Panels / Solar System Solar Panels

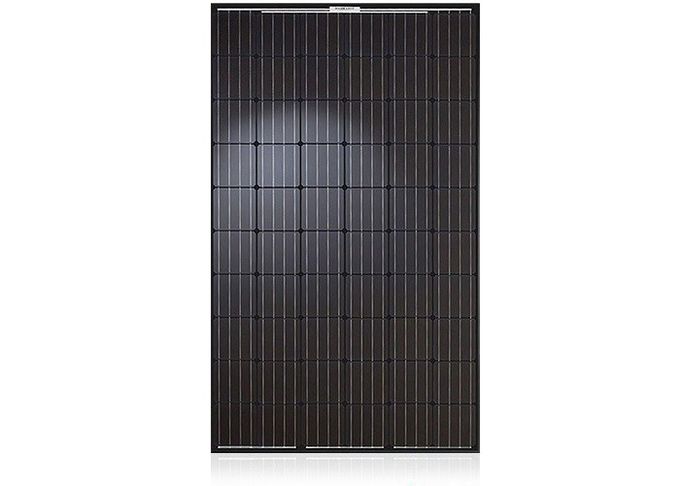

Large Image :  High Transmittance Black Solar PV Panels / Solar System Solar Panels

Product Details:
Place of Origin: zhejiang Pr. China
Brand Name: OLLIN PV
Certification: CE
Model Number: OL-60p-300
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece/unit
Price: Negotiable
Packaging Details: 1PC per carton,
Delivery Time: 20DAYS
Supply Ability: 2300PCS PER WEEK

High Transmittance Black Solar PV Panels / Solar System Solar Panels

Description
Material: Monocrystalline Silicon Color: Black
Dimension: 1940*990*45mm Front Glass: 3.2mm High Transmissiontempered Glass
Frame: Anodized Aluninium Alloy Operating Temperature: -40℃ To+85℃
High Light:

residential solar panels

,

solar power panels

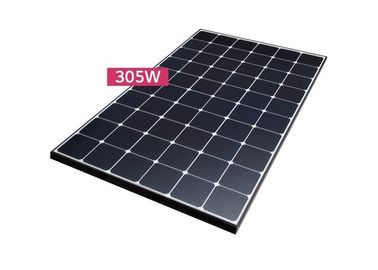

305Watt Black Solar PV Panels Solar Roof Based On Grid Power Generation



Features





High cell's efficiency with high quality silicon material for long term output stability and reliability



Rigorous quality control to meet highest international standards



High transmittance,low iron tempered glass cover with enhanced stiffness and impact resistance



Outstanding electrical performance under high temperature and low irradiance ,cloudy weather conditions



Unique frame design with high mechanical strength for easy installation



Advanced encapsulation material provide efficient protection from the severest environment conditions





Specification sheet





Type M325 M320 M315 M310 305 M300 M295 M290 M285 M280
Wattage(W) 325 320 315 310 305 300 295 290 285 280
Open Circuit Voltage(V) 45.30 45.20 45.10 45 44.9 44.8 44.6 44.5 44.4 44.2
Short Circuit Current(I) 8.87 8.79 8.71 8.97 8.87 8.8 8.73 8.67 8.6 8.49
Maximum Power Voltage(V) 37.00 36.80 36.60 36.4 36.2 36.1 35.9 35.8 35.7 35.5
Maximum Power Current(I) 8.78 8.70 8.61 8.52 8.43 8.32 8.22 8.11 7.99 7.89
Cell Efficiency 18.90% 18.60% 18.31% 18.02% 17.73% 17.44% 17.15% 16.86% 16.57% 16.28%
Module Efficiency 16.63% 16.48% 16.23% 15.97% 15.71% 15.45% 15.20% 14.94% 14.68% 14.42%
Maximum System Voltage DC1000V
Temperature Coefficient of Voc -0.27%/°C
Temperature Coefficient of Isc +0.045%/°C
Temperaturecoefficient of Pmax -0.408%/°C
Maximum Series Fuse Rating 15A
Number of Cells 72(6*12) Mono Crystalline silicon, 156*156mm(6 inches)
Junction Box Ip67 rated/with 6 bypass diodes
Cable 4.0mm2
(0.006inches2,symmetrical lengths(-)1100mm(43.30inches)and(+)1100mm(43.30inches))
Tempered Glass 3.2mm(0.13inches)tempered glass
Cell Encapsulation EVA(Ethylene-vinyl-Acetate)
Back Sheet composite film
Frame Anodized aluminum alloy
Dimension 1957*992*50mm(77.05*39.06*1.97inches)
Maximum Surface Load Capacity 5400pa
Hail maximun diameter of 25mm with impact speed of 23m-s-1
Temperature Range -40°C to + 85°C
Weight 23.0kg(50.7bs)





The Advantages



1) Excellent quality, competitive price, prompts delivery, on-time service and good reputation.


2) Fast sample delivery


3) Low minimum order


4) Fast shipment in 15~20 days on receipt of your payment.



5) We handle all the components needed for utility-connected systems, or for powering independent homes



and remote industrial sites.


6) We offer knowledgeable tech support before and after the sale.


7) We manufacture the complete line of solar modules ranging from 3w to 300w with CEC and CE approval,



offering the full spectrum sizes, solar panels are as efficient as other competitors, but far cheaper-without



skimping on quality.






Why Choose Us?





1. Golden supplier approved by MIC.



2. Supply suitable price and high quality product.



3. Offer free samples before order confirmed.



4. Commitment to delivery on time.



5. Offer a perfect pre-sale and after sale service.



6. Providing fast and economical transportation solutions.



7. We guarantee that the product is 100% compensated.



8. Providing product certificate,instructions and installation method.



9. Long-term cooperative attitude and the concept of development together.



10. A professional R&D team with 9 years history and Perfect quality management system.
