Product Details:
|
| Material: | Monocrystalline Silicon | Color: | Black |
|---|---|---|---|
| Dimension: | 1940*990*45mm | Front Glass: | 3.2mm High Transmissiontempered Glass |
| Frame: | Anodized Aluninium Alloy | Operating Temperature: | -40℃ To+85℃ |
| High Light: | solar power panels,high efficiency solar panels |
||

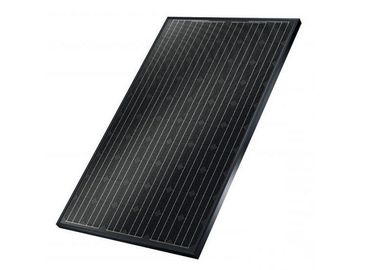

Solar water Pumping and Building Integrated Photovoltaic System 310Watt Black Solar PV Panels
FEATURES:
--- High efficiency Grade A solar cells.
--- Advanced cell encapsulation technology.
--- High transmittance,low iron tempered glass with 3.2mm thickness,unique
esthetic appearance of cells.
--- High efficiency silicon solar cells,more power in peak hours through cells.
Optimized module performance with nominal voltage 36v/30v/24v/18v/12v DC.
--- Bypass diodes to avoid hot spot effect.
--- High salt mist and ammonia resistance.
--- Attractive,stable,heavy duty anodized aluminum frames with convenient
mounting,for high wind pressure and snow load.
--- Strong,lightweight aluminum frame design with reinforced sealing and load hold
to withstand freezing and warping,and stand against high wind.
--- Pre-cabled with fast-connecting system,customer-desired packing.
Detailed Product Description
| Type | M325 | M320 | M315 | M310 | 305 | M300 | M295 | M290 | M285 | M280 |
| Wattage(W) | 325 | 320 | 315 | 310 | 305 | 300 | 295 | 290 | 285 | 280 |
| Open Circuit Voltage(V) | 45.30 | 45.20 | 45.10 | 45 | 44.9 | 44.8 | 44.6 | 44.5 | 44.4 | 44.2 |
| Short Circuit Current(I) | 8.87 | 8.79 | 8.71 | 8.97 | 8.87 | 8.8 | 8.73 | 8.67 | 8.6 | 8.49 |
| Maximum Power Voltage(V) | 37.00 | 36.80 | 36.60 | 36.4 | 36.2 | 36.1 | 35.9 | 35.8 | 35.7 | 35.5 |
| Maximum Power Current(I) | 8.78 | 8.70 | 8.61 | 8.52 | 8.43 | 8.32 | 8.22 | 8.11 | 7.99 | 7.89 |
| Cell Efficiency | 18.90% | 18.60% | 18.31% | 18.02% | 17.73% | 17.44% | 17.15% | 16.86% | 16.57% | 16.28% |
| Module Efficiency | 16.63% | 16.48% | 16.23% | 15.97% | 15.71% | 15.45% | 15.20% | 14.94% | 14.68% | 14.42% |
| Maximum System Voltage | DC1000V | |||||||||
| Temperature Coefficient of Voc | -0.27%/°C | |||||||||
| Temperature Coefficient of Isc | +0.045%/°C | |||||||||
| Temperaturecoefficient of Pmax | -0.408%/°C | |||||||||
| Maximum Series Fuse Rating | 15A | |||||||||
| Number of Cells | 72(6*12) Mono Crystalline silicon, 156*156mm(6 inches) | |||||||||
| Junction Box | Ip67 rated/with 6 bypass diodes | |||||||||
| Cable | 4.0mm2 (0.006inches2,symmetrical lengths(-)1100mm(43.30inches)and(+)1100mm(43.30inches)) |
|||||||||
| Tempered Glass | 3.2mm(0.13inches)tempered glass | |||||||||
| Cell Encapsulation | EVA(Ethylene-vinyl-Acetate) | |||||||||
| Back Sheet | composite film | |||||||||
| Frame | Anodized aluminum alloy | |||||||||
| Dimension | 1957*992*50mm(77.05*39.06*1.97inches) | |||||||||
| Maximum Surface Load Capacity | 5400pa | |||||||||
| Hail | maximun diameter of 25mm with impact speed of 23m-s-1 | |||||||||
| Temperature Range | -40°C to + 85°C | |||||||||
| Weight | 23.0kg(50.7bs) | |||||||||
What can you power with Photovoltaics?
A properly designed photovoltaic system can supply electricity for many applications, from small
remote lighting needs to megawatts of power for large utility companies. An advantage of photovoltaic
power is that it can do anything a traditional power generator can do, only without consuming pollution-
causing fuel, or requiring noisy motors.
What is a solar module?
Solar modules are series of solar cells, wired together and enclosed protect them from the environment.
They are often referred to as in self-contained glass units to solar panels as well.
