12V Solar Panel
Created with Pixso. Mono 170W 12V Solar Panel Aluminium Alloy Frame For Military Signaling Applications

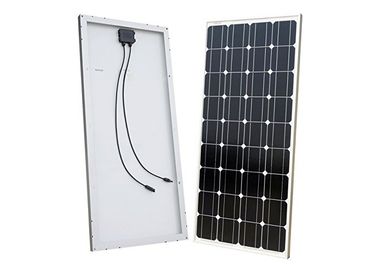

Mono 170W 12V Solar Panel Aluminium Alloy Frame For Military Signaling Applications

Brand Name: OLLIN PV
Model Number: OL-36M-160
MOQ: 1 piece/unit
Price: Negotiable
Delivery Time: 20DAYS
Detail Information
Place of Origin:
zhejiang Pr. China
Certification:
CE
Material:
Monocrystalline Silicon
Color:
Black
Dimension:
1480*680*40mm
Front Glass:
3.2mm High Transmissiontempered Glass
Frame:
Anodized Aluninium Alloy
Maximum System Voltage:
DC1000V
Power Tolerance:
±5%
Packaging Details:
2PC per carton,
Supply Ability:
2300PCS PER WEEK
Highlight:

caravan solar panels

,

sunpower solar panels

Product Description

Mono 170W 12V Solar Panel use for Military signaling applications with white and black Metal frame



Features


China manufacturer poly solar cell panels for solar power plant



Solar panel is made of light energy into electricity for charge battery ,solar panel working procesing :



Solar Panel---Solar Controller---Battery---Inverter---AC Appliance .



Solar panel constituent part :



1. Stalinite (Protect generate conductor from damage ,such as solar cell )



2. EVA (Fix aluminium alloy and generate conductor )



3. Solar cell (Generation function )



4. Backboard(PET) ,Sealing ,insulation and waterproof )



5. Aluminium alloy (Seal and support function)



6. Juntion box ( Protect generation system and transfer current function )



7. Silica gel ( Sealing function )


Specifications:




Module Type OLPV130W OLPV140W OLPV150W OLPV160W OLPV165W
Maximum power 130 W 140 W 150 W 160 W 165 W
Max power voltage 17.50 V 17.70 V 17.90 V 18.10 V 18.20 V
Max power current 7.43 A 7.92 A 8.38 A 8.84 A 9.06 A
Open circuit voltage 21.50 V 21.70 V 21.90 V 22.10 V 22.30 V
Short circuit current 7.96 A 8.49 A 9.01 A 9.53 A 9.74 A
Module Efficiency 13.13% 14.14% 15.15% 16.16% 16.67%
Power Tolerance -0~+5W -0~+5W -0~+5W -0~+5W -0~+5W
Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5
Nominal Operating Cell Temperatur 45 ± 2℃
Temperature coefficients of Isc +0.049% /℃
Temperature coefficients of Voc -0.340% /℃
Temperature coefficients of Pmax -0.430% /℃
Solar Cell Poly solar cells 156x156 mm
Front Cover 3.2 mm thick, tempered glass
Back Cover TPT (Tedlar-PET-Tedlar)
Encapsulant EVA (ethylene vinyl acetate)
Frame Double-layer anodized aluminium alloy
Junction Box IP65 rated
Maximum System Voltage DC1000V (IEC)
Maximum Series Fuse 15 A
Operating Temperature -40℃~+85℃
Storage Temperature -40℃~+85℃
Max. Wind Load / Max. Snow Load 2400Pa / 5400Pa
Application Class Class A
Packing configuration Carton.Customers packing requirement is acceptable.

Mono 170W 12V Solar Panel Aluminium Alloy Frame For Military Signaling Applications 0



SOLAR PUMPING



Solar Pumping is another application of solar photovoltaic. The solar pumping systems are of two types,



one is DC solar Pumping system and other is AC solar Pumping system. DC solar pumping systems are



small systems which are for domestic purposes, offices and irrigation of small lands up to two Acres. These



DC solar pumping systems are very reliable and cheaper. In this system the pump motor is DC motor and



one controller controls its operation which is MPPT controller responsible for smooth operation of the pump



without the need for batteries. The maximum flow with DC systems can be upto 10,000 Gallons per day with



maximum head of 200ft.





Solar AC Pumping system consists of AC Pump, Pump Controller and solar panels. These are big systems



of motor power varying from 2KW to 60KW and their up-front costs vary from Rs.1M to 20M. These AC



pumps are for all kinds of agriculture and big farming applications. The flow can vary from 10m3 per hour to



300 m3 per hour with head varying from 100 ft to 600 ft.





Solar Pumping is very specialized job and calls for high technical expertise starting from pump design &



selections to installation and commissioning of systems. The customers should buy systems from



professional companies and get installed from trained pump technicians.





Solar pumps are very economical if you compare operational costs with the conventional pumping system



working through Diesel generators or Utility Grid. The payback varies from three to seven years depending



on the type of system you are buying.


FAQ

Q1 Are you a factory or trading company?



A : Yes, we are factory, supplying OEM/ODM service.


Q2 Can you accept OEM service?



A: Yes, we can. Qty is not the only standard , more qty, less cost.

Q3 How about your after sales-service?



A: 1.Guarantee time: one year, but solar panel 10 years



    2.Spare parts:1% spare parts will be shipped with your order.

Q4 How about your payment terms?



A:  We accept T/T, LC



Q5 What certification do you have?



A :1.CE, 2.According to your need , do the certification or report , if you have a big order.



Q6 How many day about delivery time?



A: 1.Sample delivered in 3-5 days.



2.Order delivered in 15-20 days.



Q7 Which port shipping goods?
A: Ningbo port/ shanghai port/yiwu port
