Product Details:
|
| Material: | Monocrystalline Silicon | Color: | Dark Blue |
|---|---|---|---|
| Dimension: | OEM | Connector: | USB+DC |
| Number Of Cells: | 36pcs | Application: | Commercial |
| High Light: | solar panel storage bag,solar energy backpack |
||

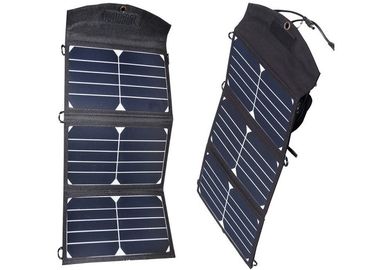

Sunpower Foldable Flexible Soft Elastic Portable Solar Mobile Phone Power Panel Solar Charger Bag
Follow the Sun, Power Your Life!
Widely Compatibility:
iPhone5, 5c, 5s, 6, 6s, 6 Plus, 6s Plus, 7, 7 Plus, 5SE, iPad Air, Air2, mini2, mini3, mini4, GoPro, iPad Pro
Android Devices such as Samsung S6 S6 edge, S7, Nexus 6, 6p and more.
DSLRs with compatible USB cable.
Devices needs a 5V input Voltage( no extra voltage ).
Package Includes:
Solar Panel * 1
Buckles * 4
60cm Length Micro USB cable for mobile devices * 1
BigBlue brand package * 1
Manual * 1
| ITEM NO | 25W/18V |
| MONO or POLY | poly |
| Maximum power (Wp) | 25wp |
| Maximum power voltage (V) | 18 |
| Maximum power current (A) | 1.38 |
| Open circuit voltage (V) | 21.6 |
| Short circuit current (A) | 1.49 |
| Number of cells (Pcs) | |
| Size of module (mm) | |
| Brand Name of Solar Cells | HT |
| Maximum system voltage (V) | 715 |
| Temperature coefficients of Isc (%) | 0.065+/-0.015%/°C |
| Temperature coefficients of Voc (%) | -(2.23+/-0.1)mv/ °C |
| Temperature coefficients of Pm (%) | -(0.5+-0.05)/ °C |
| Temperature coefficients of Im (%) | +0.1/ °C |
| Temperature coefficients of Vm (%) | -0.38/ °C |
| Temperature Range | -40°C~+85°C |
| Tolerance Wattage (e.g. +/-5%) | +/-5% |
| Surface Maximum Load Capacity | 60m/s(200kg/sq.m) |
| Allowable Hail Load | steel ball fall down from 1m height |
| Weight per piece (kg) | 1.1 |
| Length of Cables (mm) | |
| Cell Efficiency (%) | more than13% |
| Module Efficiency (%) | more than 8% |
| Output tolerance (%) | +/-5% |
| Frame (Material, Corners, etc.) | |
| Standard Test Conditions | AM1.5 100mw/cm2 25°C |
| Warranty | 2 years product warranty and 25years 80% of power |
| FF (%) | 75% |
| Packing | 10PCS/ CTN |
| Unit Price |
Usage:
can be hang on backpack,charge for panel computer,Ipad, mobile phones , Iphone, digital cameras ,
MP3; color: optional;
OEM/ODM: Silk Print is optional;
Warranty: 2 years;
Different size:
The same power, different size are optional;
Main Parts:solar panel,cloth,USB,PCB.All parts can be provided separately
i. Foldable panel design;
ii. Charging for mobile phones:1-4 hours according to capacity;
iii. With holes to hang
