Product Details:
|
| Material: | Monocrystalline Silicon | Color: | Dark Blue |
|---|---|---|---|
| Dimension: | 675*302*2mm | Connector: | USB+DC |
| Number Of Cells: | 32pcs | Application: | Commercial |
| High Light: | solar panel storage bag,solar powered bookbag |
||
Product description

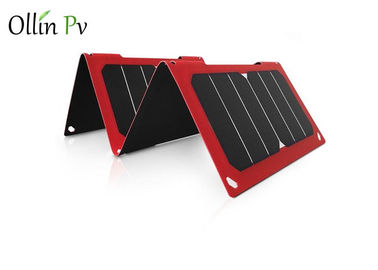

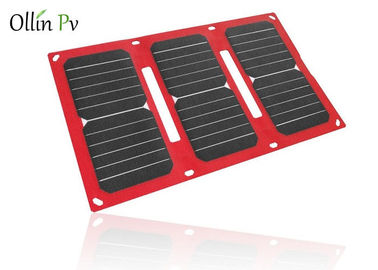

Give a kiss goodbye to power sockets and embrace the power of the sun. The RAVPower RP-PC005 is a
solar powered portable charger that utilizes the sun's rays to charge your smartphones and tablets.
Constructed with our premium SUNPOWER solar charging cells that have an increased charging efficiency
of 21.5% - 23.5%, you can power your portable devices from sunrise to sundown whenever you are
outside.
Light and Portable
Chunky and cumbersome solar chargers are a hassle to carry, set up, and use. For something much easier,
this 26.4 oz (754g) solar charger is half the size of similar chargers yet capable of generating just as much
energy without the extra baggage.
Charge Smarter
iSmart technology automatically detects and delivers the optimal charging current for any connected device,
ensuring the fastest and most efficient charge. When under direct sunlight, all three ports are individually
capable of reaching 2.4A; with a total of 4.8A being reached when all three devices are simultaneously
charging.
Power for All
Having an option for more than one USB port can result in an uneven distribution of power where one
device charges faster than the other. With our built-in Smart IC chip, the flow of energy is regulated
resulting in every device charging at an even and constant rate.
Hang It High or Lay It Low
Whether you're placing it on the ground, stretching it across a tree, or hanging it off your backpack via the
four stainless steel hooks, as long as it's directly under the sun, your devices will charge. When outside and
the elements suddenly turn on you, the waterproof nylon covering protects the solar panels while the pouch
ensures your devices stay dry.
| Wattage | 16W | 24W | |
|---|---|---|---|
| Panel Type | SunPower | SunPower | |
| Transition Efficiency | 21.5 - 23.5% | 21.5 - 23.5% | |
| No. of USB Charging Ports | 2 | 3 | |
| iSmart Technology | ✔ | ✔ | |
| Folded size | 9.41 × 6.3 × 0.2 in | 11.81 × 6.5 × 0.2 in | |
| Weight | 15.9 oz | 26.4 oz |
| ITEM NO | 25W/18V |
| MONO or POLY | poly |
| Maximum power (Wp) | 25wp |
| Maximum power voltage (V) | 18 |
| Maximum power current (A) | 1.38 |
| Open circuit voltage (V) | 21.6 |
| Short circuit current (A) | 1.49 |
| Number of cells (Pcs) | |
| Size of module (mm) | |
| Brand Name of Solar Cells | HT |
| Maximum system voltage (V) | 715 |
| Temperature coefficients of Isc (%) | 0.065+/-0.015%/°C |
| Temperature coefficients of Voc (%) | -(2.23+/-0.1)mv/ °C |
| Temperature coefficients of Pm (%) | -(0.5+-0.05)/ °C |
| Temperature coefficients of Im (%) | +0.1/ °C |
| Temperature coefficients of Vm (%) | -0.38/ °C |
| Temperature Range | -40°C~+85°C |
| Tolerance Wattage (e.g. +/-5%) | +/-5% |
| Surface Maximum Load Capacity | 60m/s(200kg/sq.m) |
| Allowable Hail Load | steel ball fall down from 1m height |
| Weight per piece (kg) | 1.1 |
| Length of Cables (mm) | |
| Cell Efficiency (%) | more than13% |
| Module Efficiency (%) | more than 8% |
| Output tolerance (%) | +/-5% |
| Frame (Material, Corners, etc.) | |
| Standard Test Conditions | AM1.5 100mw/cm2 25°C |
| Warranty | 2 years product warranty and 25years 80% of power |
| FF (%) | 75% |
| Packing | 10PCS/ CTN |
| Unit Price |
Note:
Please check the model, size, voltage, current, and power of your laptop adapter to ensure compatibility before
using.
The 10 Laptop Connector Cables only applies to some models of the corresponding computer rather than all of
them.
