Product Details:
|
| Solar Panel: | Solar Panel | Work Time (h): | About 12 Hours |
|---|---|---|---|
| Application: | Electric Fan Hiking Camping | Battery: | 12v12Ah Lead Acid Battery |
| Charging Time: | 8-10 Housr To Charge The Battery Fully | Specification: | Normal |
| High Light: | waterproof power bank,portable solar battery charger |
||

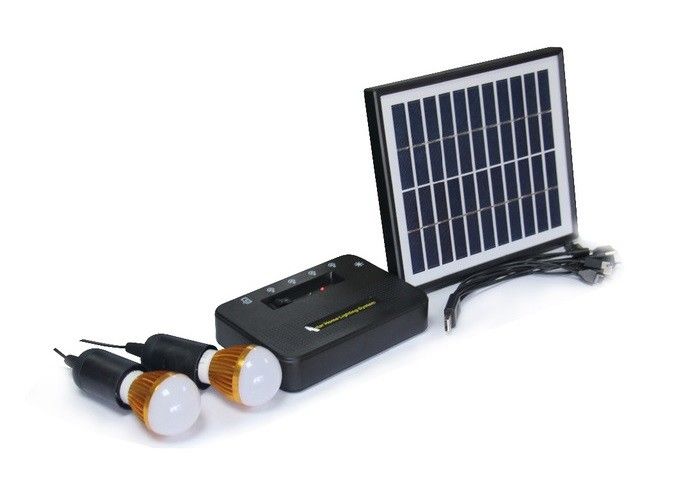

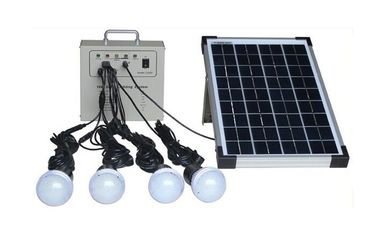

supply electric for fans computers phones lights digital camera GPS powerbank Portable Solar Panel Charger
Product features:
1. Green energy
2. The whole system's structure is simple . Easy to operate
3. With long-life solar panel--more than 20 years
4. Automatic lighting controller :with adjustable run times, over-current protection
5. Solar Batteries: Maintenance free, long life batteries
6. Its main use is general household use system .
7. Flexible designs per client requests.
| Module Type | OLPV130W | OLPV140W | OLPV150W | OLPV160W | OLPV165W |
| Maximum power | 130 W | 140 W | 150 W | 160 W | 165 W |
| Max power voltage | 17.50 V | 17.70 V | 17.90 V | 18.10 V | 18.20 V |
| Max power current | 7.43 A | 7.92 A | 8.38 A | 8.84 A | 9.06 A |
| Open circuit voltage | 21.50 V | 21.70 V | 21.90 V | 22.10 V | 22.30 V |
| Short circuit current | 7.96 A | 8.49 A | 9.01 A | 9.53 A | 9.74 A |
| Module Efficiency | 13.13% | 14.14% | 15.15% | 16.16% | 16.67% |
| Power Tolerance | -0~+5W | -0~+5W | -0~+5W | -0~+5W | -0~+5W |
| Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5 | |||||
| Nominal Operating Cell Temperatur | 45 ± 2℃ | ||||
| Temperature coefficients of Isc | +0.049% /℃ | ||||
| Temperature coefficients of Voc | -0.340% /℃ | ||||
| Temperature coefficients of Pmax | -0.430% /℃ | ||||
| Solar Cell | Poly solar cells 156x156 mm | ||||
| Front Cover | 3.2 mm thick, tempered glass | ||||
| Back Cover | TPT (Tedlar-PET-Tedlar) | ||||
| Encapsulant | EVA (ethylene vinyl acetate) | ||||
| Frame | Double-layer anodized aluminium alloy | ||||
| Junction Box | IP65 rated | ||||
| Maximum System Voltage | DC1000V (IEC) | ||||
| Maximum Series Fuse | 15 A | ||||
| Operating Temperature | -40℃~+85℃ | ||||
| Storage Temperature | -40℃~+85℃ | ||||
| Max. Wind Load / Max. Snow Load | 2400Pa / 5400Pa | ||||
| Application Class | Class A | ||||
| Packing configuration | Carton.Customers packing requirement is acceptable. | ||||
SOLAR POWER FOR TELECOMMNUCATION NETWORKS
Solar power for telecommunication networks is another application for solar photovoltaic. The
telecommunication BTS towers have power supply from Diesel Generators in areas where no grid is
available and have back up diesel generators where grid is available. Operational Expense of power
generator is very high. The best replacement of the diesel back up is the solar power which is clean energy.
These systems can be hybrid (solar and wind) where wind is available. Many telecom operators have
installed solar systems and they are very much satisfied and many are still in the process of planning for
purchase of solar power systems. Again designing of solar solution for BYS towers is a specialized job.
