| Brand Name: | OLLIN PV |
| Model Number: | OL-36p-90w |
| MOQ: | 1 piece/unit |
| Price: | Negotiable |
| Delivery Time: | 20DAYS |

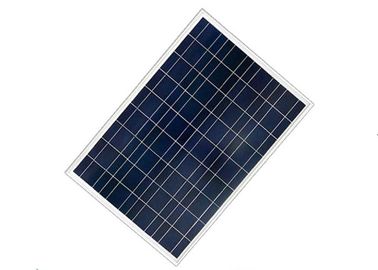

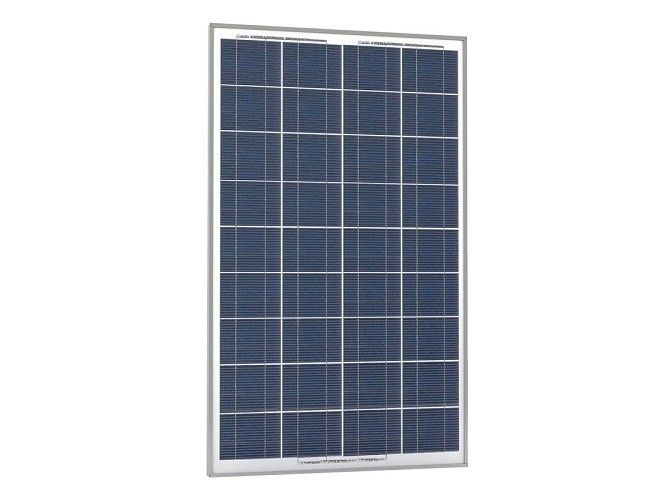

90W 12V Polycrystalline solar panel battery charger uses including marine dry camp and other off-grid applications
Features
1) Module efficiency : 16%
2) Warranty : 12 years/90%,25 years/80%, guaranteed 10years material and workmanship
3) Tolerance : Guatanteed tolerance,different model with diffetent tolerance,and delivers higher outputs
reliably
4) Excellent performance under low light conditions
5) Module certified to wind and snow loads
6) Anti-reflective, hydrophobic layer with light absorption and minimal surface dust
7) Rich selection of solar power
Mono and poly solar panels
1. High reliability with guaranteed ± 3% output power tolerance.
2. The modules can withstand high wind-pressure, snow loads and extreme temperatures
3. Bypass diodes to minimize power loss with shading
4. High and stable conversion efficency to ensure the highest quality
5. High efficiency,waterproof ,stand heavy rain and snow
Electrical Characteristics
| ITEM NO | 90W/18V |
| MONO or POLY | poly |
| Maximum power (Wp) | 90wp |
| Maximum power voltage (V) | 18 |
| Maximum power current (A) | 5 |
| Open circuit voltage (V) | 21.6 |
| Short circuit current (A) | 5.4 |
| Number of cells (Pcs) | 18 |
| Size of module (mm) | 670*1000*30 |
| Brand Name of Solar Cells | HT |
| Maximum system voltage (V) | 715 |
| Temperature coefficients of Isc (%) | 0.065+/-0.015%/°C |
| Temperature coefficients of Voc (%) | -(2.23+/-0.1)mv/ °C |
| Temperature coefficients of Pm (%) | -(0.5+-0.05)/ °C |
| Temperature coefficients of Im (%) | +0.1/ °C |
| Temperature coefficients of Vm (%) | -0.38/ °C |
| Temperature Range | -40°C~+85°C |
| Tolerance Wattage (e.g. +/-5%) | +/-5% |
| Surface Maximum Load Capacity | 60m/s(200kg/sq.m) |
| Allowable Hail Load | steel ball fall down from 1m height |
| Weight per piece (kg) | 5 |
| Length of Cables (mm) | |
| Cell Efficiency (%) | more than13% |
| Module Efficiency (%) | more than 8% |
| Output tolerance (%) | +/-5% |
| Frame (Material, Corners, etc.) | Aluminum |
| Standard Test Conditions | AM1.5 100mw/cm2 25°C |
| Warranty | 2 years product warranty and 25years 80% of power |
| FF (%) | 75% |
| Packing | 4PCS/ CTN |
| Unit Price |
Configuration Relationships between solar panel and Batteries |
||
|---|---|---|
| Batteries |
Solar Panel
|
Related Products
|
|
1.2V
|
1.8V~2V
|
|
|
1.5V
|
2.2V-2.5V
|
|
|
2.4V
|
3.6V~4V
|
|
|
3.2V
|
4.5V-5V
|
|
|
3.7V
|
5.5V-6V
|
|
|
5V
|
7V-8V
|
|
|
6V
|
9V
|
|
|
9V
|
12V-13.5V
|
|
|
12V
|
17.2~18V
|
|
|
18V
|
24V
|
|
|
24V
|
36V
|
|
|
36V
|
48V
|
54V solar panel
|
SOLAR POWER FOR TELECOMMNUCATION NETWORKS
Solar power for telecommunication networks is another application for solar photovoltaic. The
telecommunication BTS towers have power supply from Diesel Generators in areas where no grid is
available and have back up diesel generators where grid is available. Operational Expense of power
generator is very high. The best replacement of the diesel back up is the solar power which is clean energy.
These systems can be hybrid (solar and wind) where wind is available. Many telecom operators have
installed solar systems and they are very much satisfied and many are still in the process of planning for
purchase of solar power systems. Again designing of solar solution for BYS towers is a specialized job.
WHY CHOOSE US?
1. Excellent efficiency, Easy Installation & Maintenance
2. Outstanding performance in Low-Light
3. High transparent, Low-Iron, Tempered Glass
4. Ability to withstand High Wind-Pressure and Snow-Load
5. Advanced module sealing technology to eliminate leakage and frame deformation
6. Ability to meet customized customer's specific requirements
