Product Details:
|
| Name: | Polycrystalline Solar Panel | Cell Array: | 4*9 |
|---|---|---|---|
| Solar Cell: | Poly Solar Cells | Frame: | Anodized Aluminum Alloy |
| Front Sheet: | High Transmissions Low Iron Tempered Glass | Back Sheet: | TPE Quality Plastic |
| Main Market: | Asia Africa Southeast Asia | Junction Box: | JB With 0.9m Wire And Connector |
| High Light: | multicrystalline solar panels,polysilicon solar panel |
||

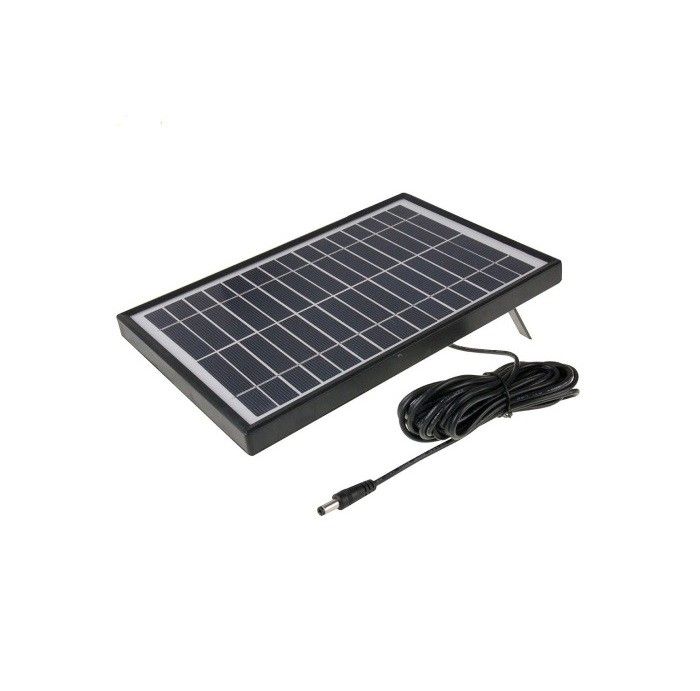

Hydrophobic Layer Polycrystalline Solar Panel With Minimal Surface Dust
Polycrystalline Solar Panel features:
1. Rated Maximum Power 110W
2. Current at Pmax ( lmp) 6.11A
3. Volatage at Pmax (Vmp) 17.4V
4. Short- Circuit Current ( lsc) 6.59A
5. Open- Circuit Voltage( Voc) 21.4V
6. Max System V 1000V
7. Max Senes Fuse Rating 10A
8. Application Class A
9. Nominal Operating Cell Temp -40 ℃ TO + 85℃
10. Widely used for camping ,travel,adventure and other fields of outdoors and charge for DC 12v / 24v / 48v battery.Included controller, cable, alligator clip, connectors, protection conners and strong supporting leg single bag.
11. Providing special design.
12. Module efficiency : 16%
13.Warranty : 12 years/90%,25 years/80%, guaranteed 10years material and workmanship
14. Tolerance : Guatanteed tolerance,different model with diffetent tolerance,and delivers higher outputs reliably
15. Excellent performance under low light conditions
16. Load test: module certified to wind and snow loads
17. Anti-reflective,with light absorhydrophobic layer ption and minimal surface dust
Specifications:
| OLLIN-100P-120P | |||||||
| Polycrystalline Solar Module | |||||||
| Mechanical Data | |||||||
| Cell type | Poly156mm*114mm | ||||||
| No.of cells | 36 in series(4*9) | ||||||
| Dimensions | 1100*670*30mm | ||||||
| Weight | 7kg | ||||||
| Electrical Data | |||||||
| Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5) | |||||||
| Power | 100WP | 110WP | 120WP | ||||
| Open circuit voltage(Voc) | 21.5V | 21.5v | 21.6V | ||||
| Max. power voltage(Vmp) | 17.46V | 17.48V | 17.5V | ||||
| Short circuit current(Isc) | 5.98A | 6.6A | 7.2A | ||||
| Max. power current(Imp) | 5.56A | 6.1A | 6.67A | ||||
| A grade power Tolerance | ± 3% | ||||||
| Max.system voltage | 1000V | ||||||
| Nominal Operating Cell Temperatur | 45 ± 2℃ | ||||||
| Temperature coefficients of Pmax | -0.47% /℃ | ||||||
| Temperature coefficients of Voc | -0.38% /℃ | ||||||
| Temperature coefficients of Isc | +0.1% /℃ | ||||||
| Solar Cell | Poly solar cells 156x156 mm | ||||
| Front Cover | 3.2 mm thick, tempered glass | ||||
| Back Cover | TPT (Tedlar-PET-Tedlar) | ||||
| Encapsulant | EVA (ethylene vinyl acetate) | ||||
| Frame | Double-layer anodized aluminium alloy | ||||
| Junction Box | IP65 rated | ||||
| Maximum System Voltage | DC1000V (IEC) | ||||
| Maximum Series Fuse | 15 A | ||||
| Operating Temperature | -40℃~+85℃ | ||||
| Storage Temperature | -40℃~+85℃ | ||||
| Max. Wind Load / Max. Snow Load | 2400Pa / 5400Pa | ||||
| Application Class | Class A | ||||
| Packing configuration | Carton.Customers packing requirement is acceptable |
How Do Solar Panels Generate Electricity?
PV solar panels generate direct current (DC) electricity. With DC electricity, electrons flow in one direction
around a circuit. This example shows a battery powering a light bulb. The electrons move from the negative
side of the battery, through the lamp, and return to the positive side of the battery.
With AC (alternating current) electricity, electrons are pushed and pulled, periodically reversing direction,
much like the cylinder of a car’s engine. Generators create AC electricity when a coil of wire is spun next to
a magnet. Many different energy sources can “turn the handle” of this generator, such as gas or diesel fuel,
hydroelectricity, nuclear, coal, wind, or solar.
AC electricity was chosen for the U.S. electrical power grid, primarily because it is less expensive to
transmit over long distances. However, solar panels create DC electricity. How do we get DC electricity into
the AC grid? We use an inverter.
FAQ
Q1 Are you a factory or trading company?
A Yes, we are factory, supplying OEM/ODM service.
Q2 Can you accept OEM service?
A Yes, we can. Qty is not the only standard , more qty, less cost.
Q3 How about your after sales-service?
A 1. Guarantee time: one year, but solar panel 10 years
Q4 How about your payment terms?
A We accept T/T, LC
Q5 What certification do you have?
A 1. CE, 2. According to your need , do the certification or report , if you have a big order.
Q6 How many day about delivery time?
A 1. Sample delivered in 3-5 days.
2. Order delivered in 15-20 days.
Q7 Which port shipping goods?
Ningbo port/ shanghai port/yiwu port
