Product Details:
|
| Solar Panel: | 160W Solar Panel | Work Time (h): | About 12 Hours |
|---|---|---|---|
| Application: | Electric Fan Hiking Camping | Battery: | 12v12Ah Lead Acid Battery |
| Charging Time: | 8-10 Housr To Charge The Battery Fully | Specification: | Normal |
| High Light: | solar powered battery charger,portable solar battery charger |
||

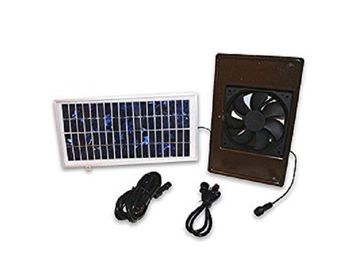

Portable Solar Panel Charger supply electric for fans computers phones lights digital camera GPS powerbank
Product features:
1. Green energy
2. The whole system's structure is simple . Easy to operate
3. With long-life solar panel--more than 20 years
4. Automatic lighting controller :with adjustable run times, over-current protection
5. Solar Batteries: Maintenance free, long life batteries
6. Its main use is general household use system .
7. Flexible designs per client requests.
Specifications:
| Module Type | OLPV130W | OLPV140W | OLPV150W | OLPV160W | OLPV165W |
| Maximum power | 130 W | 140 W | 150 W | 160 W | 165 W |
| Max power voltage | 17.50 V | 17.70 V | 17.90 V | 18.10 V | 18.20 V |
| Max power current | 7.43 A | 7.92 A | 8.38 A | 8.84 A | 9.06 A |
| Open circuit voltage | 21.50 V | 21.70 V | 21.90 V | 22.10 V | 22.30 V |
| Short circuit current | 7.96 A | 8.49 A | 9.01 A | 9.53 A | 9.74 A |
| Module Efficiency | 13.13% | 14.14% | 15.15% | 16.16% | 16.67% |
| Power Tolerance | -0~+5W | -0~+5W | -0~+5W | -0~+5W | -0~+5W |
| Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5 | |||||
| Nominal Operating Cell Temperatur | 45 ± 2℃ | ||||
| Temperature coefficients of Isc | +0.049% /℃ | ||||
| Temperature coefficients of Voc | -0.340% /℃ | ||||
| Temperature coefficients of Pmax | -0.430% /℃ | ||||
| Solar Cell | Poly solar cells 156x156 mm | ||||
| Front Cover | 3.2 mm thick, tempered glass | ||||
| Back Cover | TPT (Tedlar-PET-Tedlar) | ||||
| Encapsulant | EVA (ethylene vinyl acetate) | ||||
| Frame | Double-layer anodized aluminium alloy | ||||
| Junction Box | IP65 rated | ||||
| Maximum System Voltage | DC1000V (IEC) | ||||
| Maximum Series Fuse | 15 A | ||||
| Operating Temperature | -40℃~+85℃ | ||||
| Storage Temperature | -40℃~+85℃ | ||||
| Max. Wind Load / Max. Snow Load | 2400Pa / 5400Pa | ||||
| Application Class | Class A | ||||
| Packing configuration | Carton.Customers packing requirement is acceptable. | ||||
FAQ
Q1 Are you a factory or trading company?
A Yes, we are factory, supplying OEM/ODM service.
Q2 Can you accept OEM service?
A Yes, we can. Qty is not the only standard , more qty, less cost.
Q3 How about your after sales-service?
A 1.Guarantee time: one year, but solar panel 10 years
Q4 How about your payment terms?
A We accept T/T, LC
Q5 What certification do you have?
A 1.CE, 2.According to your need , do the certification or report , if you have a big order.
