Product Details:
|
| Cell Material: | Monocrystalline Silicon | Cell Color: | Black |
|---|---|---|---|
| Frame: | Anodized Aluminum Alloy | Front Sheet: | High Transmissions Low Iron Tempered Glass |
| Back Sheet: | TPE Quality Plastic | Main Market: | Asia Africa Southeast Asia |
| Junction Box: | JB With 3m Wire And Connector | Max. Power:: | 60W 80W 120W 180W 240W |
| High Light: | solar power plate,solar module panel |
||

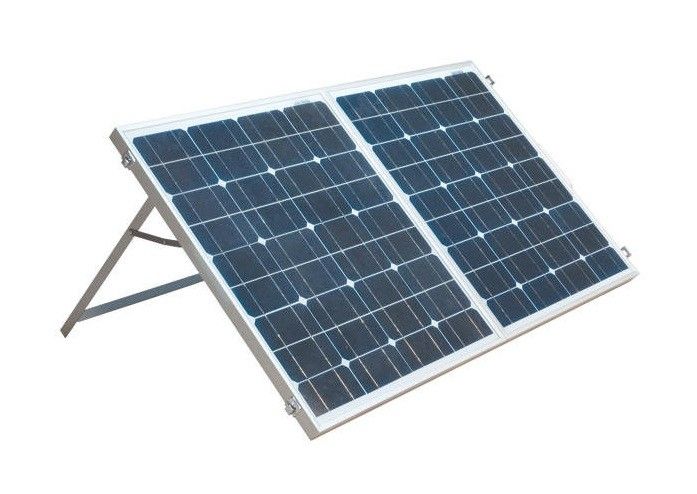

100Watt Mono camping charge used folding Solar Panel Solar Cell with heavy duty padded easy carry bag
Solar Module
1. Rated Maximum Power 100W
2. Current at Pmax (lmp) 5.58A
3. Volatage at Pmax (Vmp) 17.4V
4. Short- Circuit Current(lsc) 5.96A
5. Open- Circuit Voltage( Voc) 21.4V
6. Max System V 1000V
7. Max Senes Fuse Rating 10A
8. Application Class A
9. Nominal Operating Cell Temp -40 ℃ TO+85℃
10. Widely used for camping ,travel,adventure and other fields of outdoors and charge for DC 12v/24v/48v
battery.Included controller,cable,alligator clip,connectors,protection conners and strong supporting leg single
bag.
11. Providing special design.
12. Module efficiency : 17%
13.Warranty : 10 years/90%,25 years/80%, guaranteed 3years material and workmanship
14. Tolerance : Guatanteed tolerance,different model with diffetent tolerance,and delivers higher outputs
reliably
| Type | Folded size | Weight | Specification | ||||
| Max-power | Volatage at Pmax | Current at Pmax | Open- Circuit Voltage |
Short- Circuit Current |
|||
| Module | MM | KG | W | V | A | V |
A |
| OLPV-200W | 1200*540*70 | 20 | 200 | 18 | 10.53 | 22 |
11.37 |
| OLPV-190W | 190 | 18 | 10.15 | 22 |
10.96 |
||
| OLPV-180W | 180 | 18 | 9.62 | 22 |
10.38 |
||
| OLPV-170W | 1000*540*70 | 16 | 170 | 18 | 9.44 | 22 |
10.2 |
| OLPV-160W | 160 | 18 | 8.89 | 22 |
9.6 |
||
| OLPV-150W | 150 | 18 | 8.33 | 22 |
9 |
||
| OLPV-120W | 810*540*70 | 14 | 120 | 18 | 6.67 | 22 |
7.2 |
| OLPV-110W | 110 | 18 | 6.11 | 22 |
6.6 |
||
| OLPV-100W | 610*540*60 | 10 | 100 | 18 | 5.56 | 22 |
6 |
| OLPV-90W | 90 | 18 | 5 | 22 |
5.4 |
||
| OLPV-80W | 80 | 18 | 4.44 | 22 |
4.8 |
||
| OLPV-60W | 420*540*60 | 9 | 60 | 18 | 3.33 | 22 |
3.6 |
Terms & Conditions:
1. MOQ: 1set
2. Port: FOB ningbo/yiwu
3. Payment: L/C, T/T
4. Delivery Time: 15-25 days depending on order quantity
Solar panel applications
1. Living house and home building
2. Office building, factory and warehouse
3. shopping mall, vanue, stadium and so on
4. Power station, field operation some huge engineer construction.
