Product Details:
|
| Cell Material: | Polycrystalline Silicon | Cell Color: | Blue |
|---|---|---|---|
| Front Sheet: | High Transmissions Low Iron Tempered Glass | Back Sheet: | TPE Quality Plastic |
| Main Market: | Asia Africa Southeast Asia | Junction Box: | JB With 0.9m Wire And Connector |
| High Light: | round solar cell,small solar cells |
||

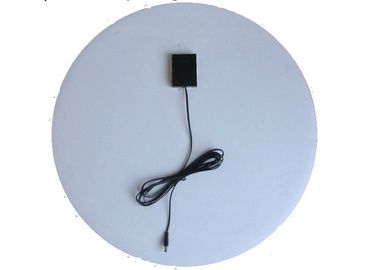

Round solar panel 25W
1. Positive Tolerance
2. MOQ :100pcs
3. Beautiful looking Solar Panel
4. Art Solar panel
| Peak Power | 25W |
| Open Circuit Voltage | 20.3V |
| Short Circuit Current | 1.49A |
| Optimum Operating Voltage | 16.9V |
| Optimum operating current | 1.38A |
This Round Solar Panel are used in Solar Garden Light and Solar Lights in High way.Also other use.
3 years product warranty
10 years of 90% power output
25 years of 80% power output
| Ollin PV25-M | 25W Poly solar panel |
| Solar cell | Polycrystalline solar cell 125-2bus |
| No.of cells and connections | 36pcs |
| Test condition | AM1.5, 1000W/m², 25°C |
| Tolerance | ±5% |
| Maximum power(Pm) | 25(W) |
| Voltage at max power(Vmp) | 18.0(V) |
| Current at max power(Imp) | 1.38(A) |
| Short circuit current(Isc) | 1.58(A) |
| Open circuit voltage(Voc) | 21.6(V) |
| Dimension of module | Φ495*5mm |
We manufacture mini solar panel
Shape: square, rectangle, triangle, tetragonum(parallelogram, rhombus, trapezoid), round, fanshaped,
arch, circle and polygon.
solar cell: poly or mono high efficiency of 16.5%-23%
service life: 5-7years(PET mini solar panel)
usage: our clients use the panel for solar lighting-solar lamps, solar garden lights, solar lantern ect., solar
charger and thousands of solar applications.
specification: Pm: 0.01W to 200W, Vmp: 0.5W to 72V Imp: 0.02A to 10A
Packaging Details
1 carton box and pallet
2 According to your requirement/Suitable for shipment
Delivery Details
1 15~20 working days after received deposit
2 Based on Qty
Applications:
1. Small home projects
2. Science projects
3. Electronic applications
4. Charging small DC batteries
5. Build your DIY powered models/ solar toys/ solar displays
