| Brand Name: | OLLIN PV |
| Model Number: | OEM |
| MOQ: | 1set |
| Price: | negotiation |
| Delivery Time: | 20days |
Features of the solar street light:
1. Very easy to install, IP65 Waterproof and stunning quality for outdoor and indoor flood light.
2. Provide bright and wide beam distribution light for general purpose flood night lighting.
3. Energy-saving and Eco-friendly, no any pollution to environment.
4. High efficiency, low light decay.
Detailed Product Description
Maximum Power (Pm) :1.9W
Operating Voltage (Vmp):6V
Operating Current (Imp) :105mA
Power Tolerance:-5% to +5%
Dimension: Diameter:160mm, thinkness:5mm
Panel color: White
Glass thickness:3.2mm,Low iron tempered glass
Type:Monocrystalline silicon solar cell
Encapsulation Methods: Glass Lamination Solar panel
No frame, without junction box, with solder wire
STANDARD TEST CONDITIONS(STC): AM1.5, Irradiance:1000W/square meters, Module temperature:25 degrees centigrade.
Warranty: nominal power keep
| Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5 | |||||
| Nominal Operating Cell Temperatur | 45 ± 2℃ | ||||
| Temperature coefficients of Isc | +0.049% /℃ | ||||
| Temperature coefficients of Voc | -0.340% /℃ | ||||
| Temperature coefficients of Pmax | -0.430% /℃ | ||||
| Solar Cell | Poly solar cells 156x156 mm | ||||
| Front Cover | 3.2 mm thick, tempered glass | ||||
| Back Cover | TPT (Tedlar-PET-Tedlar) | ||||
| Encapsulant | EVA (ethylene vinyl acetate) | ||||
| Frame | Double-layer anodized aluminium alloy | ||||
| Junction Box | IP65 rated | ||||
| Maximum System Voltage | DC1000V (IEC) | ||||
| Maximum Series Fuse | 15 A | ||||
| Operating Temperature | -40℃~+85℃ | ||||
| Storage Temperature | -40℃~+85℃ | ||||
| Max. Wind Load / Max. Snow Load | 2400Pa / 5400Pa | ||||
| Application Class | Class A | ||||
| Packing configuration | Carton.Customers packing requirement is acceptable. | ||||

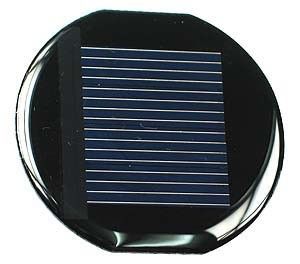

Epoxy solar panel is a traditional type small solar panel called which is sticked together
by epoxy resin glue at a temperature 50~60 degree, you will see the epoxy resin coated panel have three
layers.(epoxy resin AB Glue, solar cells, pcb board)
PET solar panel belongs to solar panel series, just different encapsulation.In order to have required output
of voltage and current, we need to cut a whole solar cell into small pieces.
1.High efficiency monocrystalline or polycrystalline solar cells.
2.Epoxy or PET or Glass laminate.
4.Ideal for mobile phone,mobile phone chargers, small power consumption electronics and electronic gifts.
OEM Available;
System configuration service;
Technical support.
WHY CHOOSE US?
1. Excellent efficiency, Easy Installation & Maintenance
2. Outstanding performance in Low-Light
3. High transparent, Low-Iron, Tempered Glass
4. Ability to withstand High Wind-Pressure and Snow-Load
5. Advanced module sealing technology to eliminate leakage and frame deformation
6. Ability to meet customized customer's specific requirements
|
|
