Place of Origin: | zhejiang Pr. China |
Brand Name: | OLLIN PV |
Certification: | CE |
Model Number: | OEM |
Minimum Order Quantity: | 1 piece/unit |
---|---|
Price: | negotiation |
Packaging Details: | carton, |
Delivery Time: | 20DAYS |
Supply Ability: | 230000PCS PER WEEK |
Material: | Monocrystalline Silicon | Color: | Black |
---|---|---|---|
Dimension: | OEM | Frame: | No Frame |
Epoxy: | Solar Panels | Shape: | Round |
High Light: | circular solar panels,round solar cell |

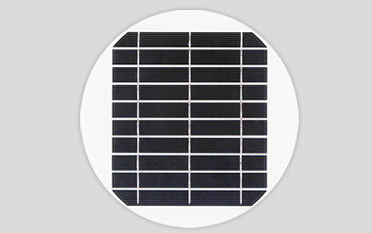

6V 2W Round Solar Panel white color poly solar cells charged for solar garden light solar street light
Features:
ENHANCED EXTERNAL LOAD / IMPACT
Snow Load : 5,400 Pa (30T) / 8,400 Pa (40T)
Wind Load : 2,400 Pa (30T) / 5,400 Pa (40T)
Hail Impact : 30.7m/s (speed ball)
POWER ADVANTAGE
25-year, linear power warranty
> 97.5% nominal power during 1st year
Positive tolerance up to +5W
PID RESISTANCE
Enhanced potential induced degradation
FIRE SAFETY
UL1703 Fire Classification : Type 1, Type 2
ENVIRONMENT RESISTANCE
Suitable for extreme conditions
Resistant to high salt mist and ammonia
AVAILABLE IN TWO THICKNESSES
Standard (30T) and 40T for more durability
PET encapsulation solar panels
Model:2M
Vmp : 6V
Imp :330mA
Voc: 7.2V
Isc: 363ma
Num. of cell :12=2*6pcs
Size :Dia160*3mm
Solar cell : Monocrystalline
Solar Cell Efficiency:19%
Working Temperature : -20°C - +80°C.
Testing Standard Irrandiance:1000W/m² Module temperature 25°C,AM=1.5
Temperature: Current temperature coefficient :0.06±0.01%/K
Voltage temperature coefficient:-(78±10)MV/K
Power temperature coefficient :-(0.5±0.05)%/K
Item No. | Max Power | Rated Voltage | Output Voltage | Dimension | Net Weight |
0.5V100MA | 0.05W | 0.5VDC | 53x18x3mm | 0.003kg | |
1V85MA | 0.085W | 1VDC | 30x25x3mm | 0.0022kg | |
1.5V400MA | 0.65W | 1.5VDC | Charge for 1.2V Battery | 80x60x3mm | 0.018kg |
2V130MA | 0.26W | 2VDC | 54x54x3mm | 0.009kg | |
2V50MA | 0.1W | 50x34x3mm | 0.008kg | ||
3V120MA | 0.36W | 3VDC | 60x55x3mm | 0.011kg | |
5V30MA | 0.15W | 5-5.5VDC | Charge for 3.6V-3.7V Battery | 53x30x3mm | 0.005kg |
5V60MA | 0.3W | 68x36x3mm | 0.01kg | ||
5V150MA | 0.75W | 99x69x3mm | 0.02kg | ||
5.5V50MA | 80x35x3mm | 0.01kg | |||
5.5V60MA | 0.3W | 100x28x3mm | 0.01kg | ||
5.5V100MA | 0.55W | 84.5x55.5x3mm | 0.018kg | ||
5.5V120MA | 0.66W | 80x60x3mm | 0.02kg | ||
6.5V90MA | 0.6W | 6-6.5VDC | 120x70x3mm | 0.03kg | |
6V100MA | 0.6W | 120x38x3mm | 0.016kg | ||
6V330MA | 2W | 136x110x3mm | 0.06kg | ||
6V500MA | 3W | 145x145x3mm | 0.07kg | ||
6V580MA | 3.5W | 135x165x3mm | 0.077kg | ||
6V750MA | 4.5W | 145x145x3mm | 0.07kg | ||
8V150MA | 1.2W | 8VDC | Charge for 6V Battery | 145x95x3mm | 0.05kg |
12V250MA | 3W | 12VDC | Charge for 8V Battery | 145x145x3mm | 0.07kg |
18V190MA | 3.5W | 18VDC | Charge for 12V Battery | 165x135x3mm | 0.082kg |
18V200MA | 4.2W | 200x130x3mm | 0.109kg |
SOLAR LIGHTING
Solar Lighting is another application of solar photovoltaic. Solar Lighting has many types. The solar
lighting can be solar street lighting, solar flood lighting, solar garden lighting or some special applications
of lighting. In solar lighting, very important thing is the designing of solution so that the lights work
automatically and remain on as per requirement. Most of the solar lights, we see un-lit in the nights or
they lit for some hours and then go off against the timing requirement. The reason for this is that the un-
professional people have designed and sold under-designed and low quality systems. While purchasing
the solar lighting systems, define your specifications and then buy systems accordingly and monitor their
operational hours continuously.
Solar street lights are independent of the utility grid. Hence, the operation costs are minimized.
Solar street lights require much less maintenance compared to conventional street lights.
Since external wires are eliminated, risk of accidents are minimized.
This is a non polluting source of electricity
Separate parts of solar system can be easily carried to the remote areas
It allows the saving of energy and also cost.
