Product Details:
|
| Material: | Monocrystalline Silicon | Color: | Black |
|---|---|---|---|
| Dimension: | OEM | Frame: | No Frame |
| Epoxy: | Solar Panels | Shape: | Round |
| High Light: | circular solar panels,round solar cell |
||

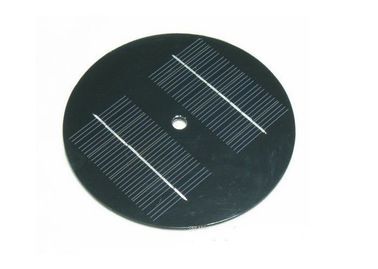

Small size Round Solar Panel used for solar Garden wall lamp Mason jars Solar Mosquito control
Specifications
Monocrystalline Solar Cell
Efficiency: 14.7%
Color: Blue
Peak Voltage (Vmp): 6V
Open Circuit Voltage (Voc): 7.2V
Peak Current (Imp): 100mA
Short Circuit Current (Isc): 110mA
Dimensions: 100mm diameter
| Item No. | Max Power | Rated Voltage | Output Voltage | Dimension | Net Weight |
| 0.5V100MA | 0.05W | 0.5VDC | 53x18x3mm | 0.003kg | |
| 1V85MA | 0.085W | 1VDC | 30x25x3mm | 0.0022kg | |
| 1.5V400MA | 0.65W | 1.5VDC | Charge for 1.2V Battery | 80x60x3mm | 0.018kg |
| 2V130MA | 0.26W | 2VDC | 54x54x3mm | 0.009kg | |
| 2V50MA | 0.1W | 50x34x3mm | 0.008kg | ||
| 3V120MA | 0.36W | 3VDC | 60x55x3mm | 0.011kg | |
| 5V30MA | 0.15W | 5-5.5VDC | Charge for 3.6V-3.7V Battery | 53x30x3mm | 0.005kg |
| 5V60MA | 0.3W | 68x36x3mm | 0.01kg | ||
| 5V150MA | 0.75W | 99x69x3mm | 0.02kg | ||
| 5.5V50MA | 80x35x3mm | 0.01kg | |||
| 5.5V60MA | 0.3W | 100x28x3mm | 0.01kg | ||
| 5.5V100MA | 0.55W | 84.5x55.5x3mm | 0.018kg | ||
| 5.5V120MA | 0.66W | 80x60x3mm | 0.02kg | ||
| 6.5V90MA | 0.6W | 6-6.5VDC | 120x70x3mm | 0.03kg | |
| 6V100MA | 0.6W | 120x38x3mm | 0.016kg | ||
| 6V330MA | 2W | 136x110x3mm | 0.06kg | ||
| 6V500MA | 3W | 145x145x3mm | 0.07kg | ||
| 6V580MA | 3.5W | 135x165x3mm | 0.077kg | ||
| 6V750MA | 4.5W | 145x145x3mm | 0.07kg | ||
| 8V150MA | 1.2W | 8VDC | Charge for 6V Battery | 145x95x3mm | 0.05kg |
| 12V250MA | 3W | 12VDC | Charge for 8V Battery | 145x145x3mm | 0.07kg |
| 18V190MA | 3.5W | 18VDC | Charge for 12V Battery | 165x135x3mm | 0.082kg |
| 18V200MA | 4.2W | 200x130x3mm | 0.109kg |
Glass
1. High light transmission no less than 91.6%
2. Excellent mechanical loading performance (5400 PA)
EVA
1. High light transmission
2. High GEL and peeling strength guarantying strong encapsulation
3. Good ultraviolet aging resistance
4. Excellent oxidation resistance
Cell
1. Excellent efficiency and long term reliability
2. Good performance under high temperature and low irradiate conditions
3.100% In-line Electro-luminescence (EL) tested100%
4. Positive tolerance for each panel
5. Cell efficiency filling by 0.2 percentage
