| Brand Name: | OLLIN PV |
| Model Number: | OEM |
| MOQ: | 1 piece/unit |
| Price: | negotiation |
| Delivery Time: | 20DAYS |

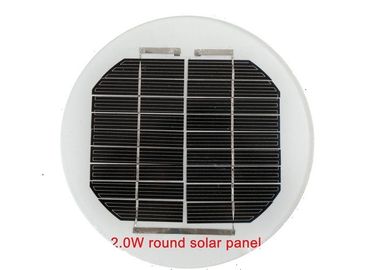

Plastic solar light lids Mason jars Solar Mosquito control mini traffic light 2watt Round Solar Panel charger
MATERIALS
Epoxy is a type of liquid resin known for its good adhesive properties and resistance to water degration.
That is why they are used for laminating solar cells and is also used in boat building too. They are usually
identified by their amber or slight brown colour. They also have high electrical insulation and good chemical
resistance. However, in the long run, they can age prematurely under the Sun, turning yellowish and
become more brittle.
| ELECRICAL CHARACTERISTICS | |||
| Power | 2W | ||
| Operating Voltage | 6V | Open Circuit Voltage | 7.2V |
| Operating Current315 | mA | Short circuit current | 343mA |
| Type of solar cell | Monocrystalline Silicon solar cell | ||
| Power Tolerance | ±5% | ||
| (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5 | |||
How Do Solar Panels Work?
When photons hit a solar cell, they knock electrons loose from their atoms. If conductors are attached to
the positive and negative sides of a cell, it forms an electrical circuit. When electrons flow through such a
circuit, they generate electricity. Multiple cells make up a solar panel, and multiple panels (modules) can be
wired together to form a solar array. The more panels you can deploy, the more energy you can expect to
generate.
|
|
